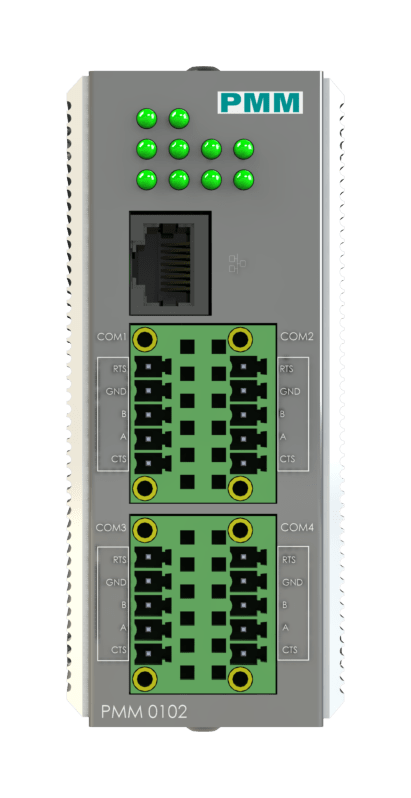

PMM0102 - ARM Flex
COMPACT ARM BASED EMBEDDED INDUSTRIAL COMPUTERS
Price from USD 396.04
Key features
- Allwinner H3, Quad-core Cortex-A7 CPU
- 512MB RAM and Embedded 8GB eMMC hard drive
- 2x Ethernet 10/100 ports
- Supports 2.4 WIFI
- 4x customized serial/IO communication ports covering all industrial standards
- 1x USB2.0 Type A
- Ubuntu Core operating system
- Arduino® compatible programming
- Built to meet all harsh environment and Power substation requirements
- Wide range of power supply options
- -40 to 85°C (-40 to 185°F) system operating temperature
- Compact size with fanless design
- Wide range of mounting options
Overview
DESCRIPTION
PMM0102 is a rugged powerful reliable fanless Linux based embedded industrial computer, powered by Allwinner H3 CPU, which offers high-performance processing with a high degree of functional integration.
The device represents an ideal computing solution for tight spaces, since it is highly compacted in size, designed a small footprint and multiple I/Os. Having all communication ports in one spot makes for a neater overall look and easier connection in applications where all four ports are necessary.
PMM0102 offers the client a wide range of interfaces covering most of the industrial standards and increasing the connectivity. Moreover, PMM0102 is covered by a durable metal chassis which was designed and tested on the field to withstand shock, vibration, extended temperature ranges and challenging elements of a harsh environment. It is especially designed to meet all power substations and PV plants requirements.
APPLICATION
PMM0102's features provide long lasting and reliable operation for a wide range of applications such as:
- Factory and Machine automation
- Power plant controllers
- NTP timing servers
- SQL data banks server
- Field Data loggers
- Protocol and Media converters
- PV Tracker controller
- ...And many more.
Specifications
| Computer | |
|---|---|
| CPU | Allwinner H3, Quad-core Cortex-A7 CPU |
| DRAM | 512 DD3RAM |
| Storage | 8GB eMMC |
| RTC CHIP | DS3231 |
| Pre-installed OS | Ubuntu Core |
| Computer Interface | |
| Ethernet | 2x 10/100Base-T RJ45 |
| USB | 1x USB2.0 Type A | 1x Micro USB |
| WI-FI | 2.4 GHz |
| Serial | 1x RS485 |
| Optional Interface | 16 pins connector on edge with following connectivity options (max 3 options can be chosen upon order to be factory pre-fitted) | RS232 | RS485 | RS422 | CAN bus | Analog Input | Analog Output | Digital Input | Digital Output |
| SD Slot | 1x MicroSD card socket for user supplied card up to 64GB |
| Power Parameters | |
| Power Supply Options | 10-56 VDC | 8-40 VAC | 36-72 VDC | 25-50 VAC | 85-285 VAC / 100-300 VDC |
| Power Connector | Phoenix Contact 4pins 3.5mm |
| Physical Characteristics | |
| Protection Level | IP 54 |
| Housing | Metal |
| Dimensions | 4 x 4 x 1.75 inch (103 x 103 x 44 mm) |
| Mounting Options | Standard 35mm DIN Rail | Direct Panel Mounting | Front Panel Mounting | 19” rack 1U (Optional) |
| Certifications | RoHS, CE and FCC |
