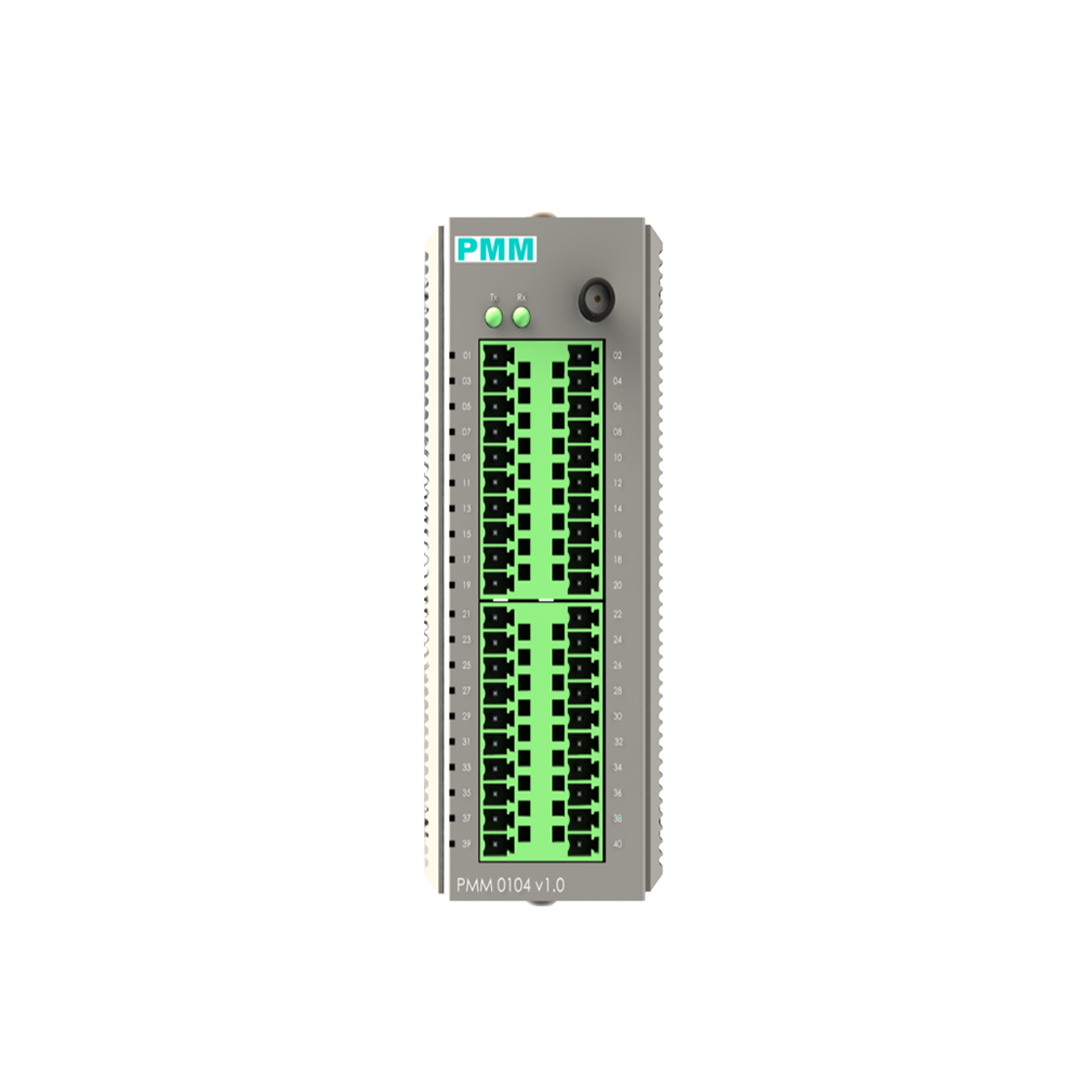

PMM0104 - ARM PLC /Programmable IO
Arm PLC / Programmable IO
Price from USD 363.87
Key features
- Open platform-license-free with unlimited possibilities powered by 32-bit ARM Cortex-M3 RISC processor
- Different operational modes through DIP switches cover: Standalone or Central PLC CPU, Remote IO RTU and TCP, Process controller, Communication processor, Media converter and more
- 38 Customized IO Pins through our signal conditioner range including: 38 Digital inputs cover most standard voltage levels. 38 Digital outputs cover most standard types of switching. 10 x 12bit Analog inputs cover most standard types of analog inputs. 2 x 10bit Analog Outputs. 10 PWM outputs for Analog Outputs and motor control. Up to 8 Serial communication ports cover all standard types as RS232, RS422, RS485, CanBUS, SPI, I2C and more. Any Mix of Above options within the 38 pins.
- 1x Ethernet 10/100 port
- 1x RS485 communication port with 115,200 bps Baud Rate
- Wi-Fi 2.4GHz Port with external antenna
- GSM Ready Communication Slot
- 2-32 GB customizable SD card slot
- RTC with internal battery
- Many Programming options include Ladder diagram, Function block, Visual Studio, Arduino IDE compatible and many more
- Different Power supply options with over voltage and reverse polarity protection
- Redundant in/out 5VDC direct Power option to be connected with signal conditioners or PMM compatible UPSs
- ± 2.5 kV ESD protection
- Meets all power substation requirements
- Different mounting system style options
- -40 to 85°C (-40 to 185°F) system operating temperature
- Compact, fanless design
- Degree of protection: IP54
Overview
DESCRIPTIONPMM0104 is a rugged, powerful, reliable and fanless industrial CPU, independent, flexible, innovative, secure, and license-free powered by a 32-bit ARM Cortex-M3 RISC processor. This device has a large variety of applications within the industrial domain, the pins can be easily customized through any type of programming software to fit function through our range of signal conditioners. Its enclosed within a durable metal chassis that has been thoroughly tested on field to withstand shock, vibration, extended temperature ranges as well as the challenging elements of the harsh industrial environment. With this industrial controller all field standards of power and requirements are met. It is easily configurable, customizable, flexible, and reliable. |  .. and few thousands more companies !! |
Specifications
| Controller | |
|---|---|
| CPU | 32-bit ARM Cortex-M3 RISC processor |
| Flash /SRAM | 512 KB /100 KB |
| RTC CHIP | DS3231 |
| Controller Interface | |
| Ethernet | 1x ports 10/100 |
| Serial Communication Port | 1x RS485 |
| SD Card Slots | MicroSD |
| USB Ports | 1x USB2.0 type A |
| Optional Interface | 38 Digital inputs/outputs | 12x12 bit Analog Input | 2x10 bit Digital to Analog | 10x PWM | 2x I2C | 2x UART | 1x SPI |
| Optional Modules | Wi-Fi 2.4Ghz Port | GSM Module |
| Power Parameters | |
| Power Supply Options | 10-60 VDC | 85-285 VAC / 100-300 VDC |
| Power Connector | Phoenix Contact 4 pins 3.5mm |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 4 x 4 x 1.75 inch (101 x 101 x44 mm) |
| Mounting system | Standard 35mm DIN Rail | Direct Panel Mounting | Front Panel Mounting | 19” rack 1U |
| Certifications | RoHS, CE and FCC |
