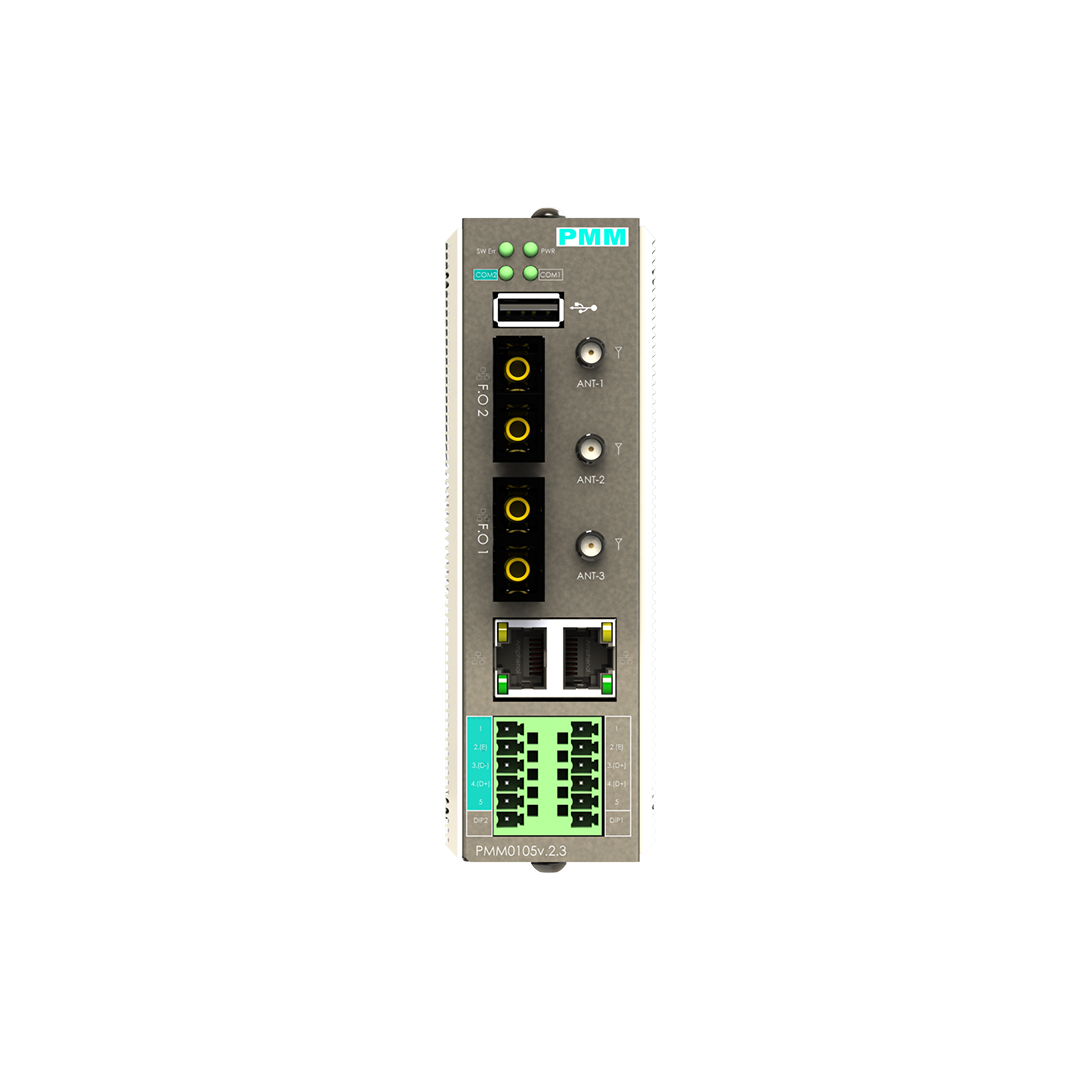

PMM0105 - ARM With 2x F.O
Arm Based Industrial Computer
Price from USD 446.46
Key features
- Allwinner H3, Quad-core Cortex-A7 CPU
- Meets all substation requirements
- Arduino® compatible programming
- 2x Fiber optics Customizable ports
- 2x Ethernet 10/100 ports
- 2x Customizable communication ports RS485, RS32, RS422, CAN bus or I/O
- Built-in or add-on cards are easily customized
- Wide range of power supply options
- -40 to 85°C (-40 to 185°F) system operating temperature
- Different mounting system style options are applicable.
- Compact, fanless design
- Ubuntu core with mainline kernel 4.14
- Degree of protection: IP54
Overview
DESCRIPTION
PMM0105 is a rugged, powerful, reliable and fanless industrial embedded computer, powered by Allwinner H3, Quad-core Cortex-A7 CPU.
It is enclosed within a durable metal chassis that has been fully tested on field to withstand shock, vibration, extended temperature ranges as well as the challenging elements of the environment.
With this industrial computer all field standards of power, power substation and PV requirements are met. Besides being reliable it is easily configured giving it a long-lasting life.
APPLICATION
PMM0105 is specifically designed for industrial applications where the environmental conditions are tough and unpredictable. The device contains many interfaces to cover all industrial standards giving the client increased connectivity and easy customization to fit their specific needs.
There are many applications that PMM0105 can perform with high efficiency and effectiveness offering intelligent and flexible solution such as:
- Billing server
- SQL data banks
- Data loggers
- Power Plant Controllers
- Power Meter Reader
- IEC101/104 to Modbus converter
- DLMS to Modbus converter
- Database synchronizing
- Tracker controller
- Factory automation
Specifications
| Computer | |
|---|---|
| CPU | Allwinner H3, Quad-core Cortex-A7 CPU |
| DRAM | 1GB |
| RTC CHIP | DS3231 |
| Pre-installed OS | Ubuntu core with mainline kernel 4.14 |
| Computer Interface | |
| Ethernet | 2x ports 10/100 |
| Fiber | 2x customized fiber optic ports on ordering: | Sc1x9 40km / SFP port |
| Expansion COMM Slots | 2x customizable communication slots: | PMM RS485 Module | PMM RS232 Module | PMM RS422 Module | PMM CAN Bus Module | PMM IO Module |
| USB Ports | 1x USB2.0 type A |
| Power Parameters | |
| Power supply options | 10-56 VDC | 8-40 VAC | 36-72 VDC | 25-50 VAC | 85-285 VAC / 100-300 VDC |
| Power connector | Phoenix Contact 4pins 3.5mm |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 5.27 x 5.27 x 1.45 inch (134 x 134 x37mm) |
| Mounting system | Standard 35mm DIN Rail | Direct Panel Mounting | Front Panel Mounting | 19" rack 1U |
| Certifications | RoHS, CE and FCC |
