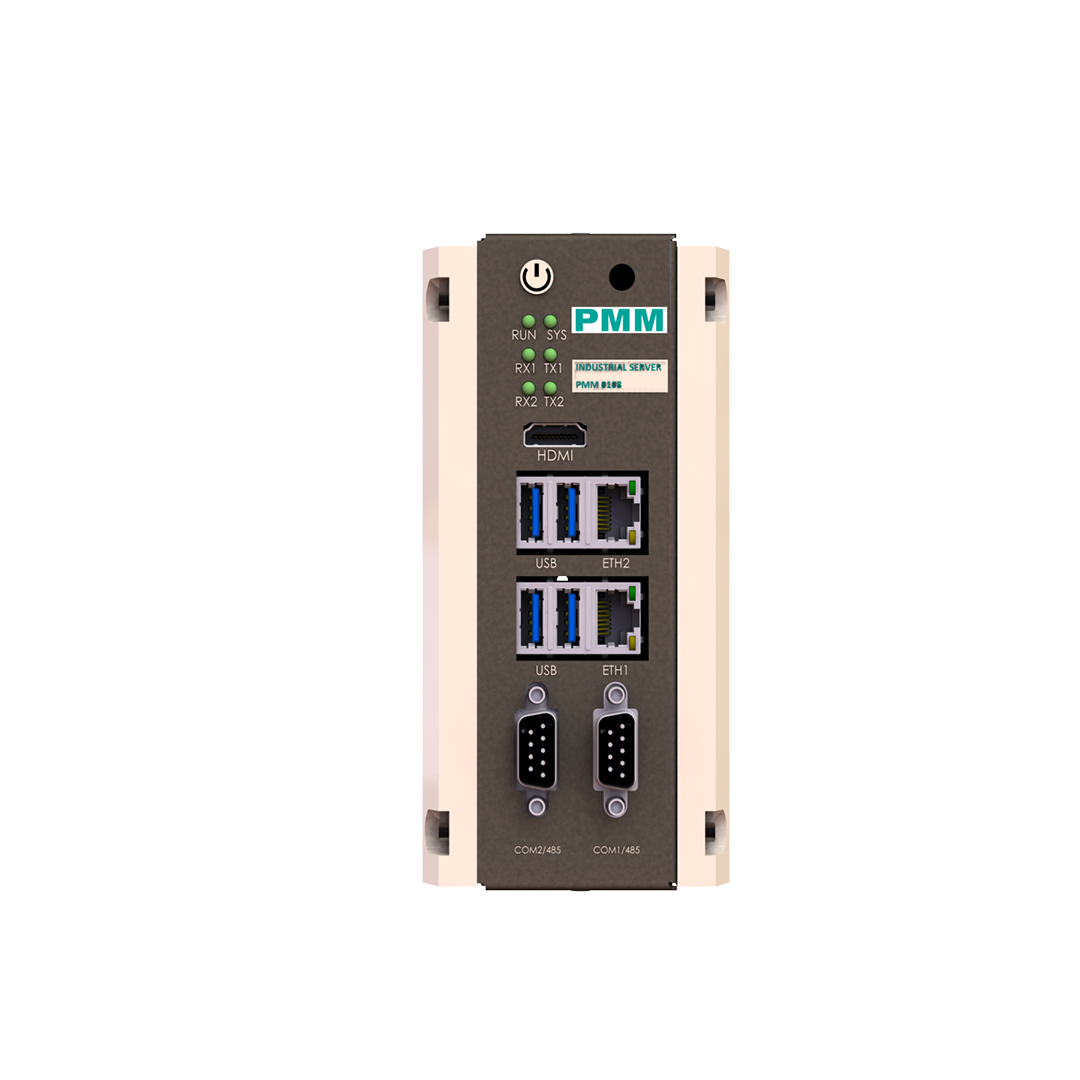

PMM0108 - X86 Advanced
PMM Industrial Intelligence Processing Unit
Price from USD 1100.00
Key features
- Intel® Apollo Lake Series J3355
- Dual-core 2.3 GHz frequency
- Operating system: MS Windows 10, 64-bit
- 2x RS485 ports serial/IO communication ports
- Supports 2.4/5 GHz WIFI
- Wide range of power supply options
- Compact size with fanless design
- Built to meet all power substation requirements
- Wide range of mounting systems to ensure excellent heat dissipation
- -20 to 60°C (-4 to 140°F)system operating temperature
- -40 to 85°C (-40 to 185°F) storage temperature
Overview
DESCRIPTION
PMM0108 is a rugged, powerful, reliable and fanless industrial embedded computer, powered by Intel® Apollo Lake Series J3355.
It is enclosed within a durable metal chassis that has been thoroughly tested on field to withstand shock,vibration, extended temperature ranges as well as the challenging elements of the harsh environment.
With this industrial computer all field standards of power, power substation and PV requirements are met. Besides being reliable it is easily configured giving it a long-lasting life.
TARGET APPLICATION
PMM0108 is made with intelligent and flexible solutions to equip the clients with all features needed to deploy their industrial applications with swiftness and reliability.
It is ideal, including, but not limited to the following target applications:
- Power Plant Controllers
- Hybrid Controller
- PV optimizer
- Billing server
- Database synchronizer
- Power Meter Reader
- Historical power meter reader
- Modbus data logger
- Multi data logger
- Database SQL
Specifications
| Processor | |
|---|---|
| CPU | Intel® Apollo Lake Series J3355 |
| Frequency | Dual core 2.3GHz |
| L2 Cache | 2 MB |
| BIOS | AMI EFI 16Mbit |
| Memory | |
| Architecture | DDR3L-1666MHz |
| Capacity | Up to 8GB |
| DIMM | 1 x 204-pin SODIMM |
| Display | |
| Display Controller | Integrated graphics media accelerator |
| HDMI | Max resolution up to 4096×2160@30Hz |
| LAN | |
| LAN 1 | Intel i210 Gbe LAN controller |
| LAN 2 | Intel i210 Gbe LAN controller |
| Extended LAN | 4 x 1000Mbps RJ-45 |
| I/O | |
| COM | 2 x RS-232(RS-232/485 Optional) |
| LPT | N/A |
| USB | 4 x USB3.0/2.0/1.1 |
| Other | |
| Digital IO | N/A |
| Watchdog | 0 to 255 seconds programmable |
| Expansion Slot | |
| Mini ePCI | 2 * full size ePCI with SIM holder |
| OS | |
| Microsoft Windows | Windows 10 |
| Power | |
| Type | AT |
| Power Dissipation | |
| No-load | 15 Watt |
| Mechanism Parameters | |
| Box Structure | Aluminium alloy box |
| Environmental | |
| Work Temperature | -20 to 60°C (-4 to 140°F) Wide temperature SSD | 0 to 45°C (32 to 113°F) General temperature HDD/SSD |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
