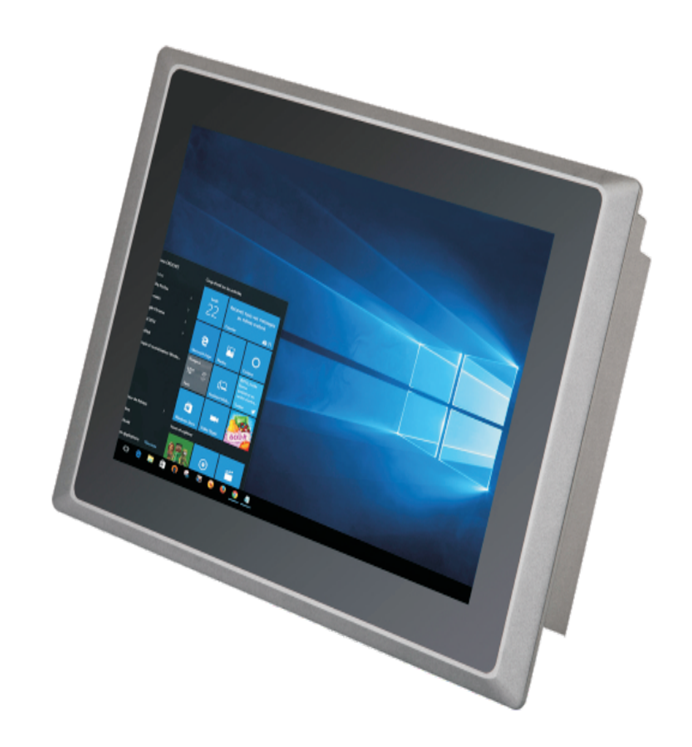

PMM0109 - X86 Advanced 15" Touch
PMM X86 - Advanced 15" Touch
Price from USD 1461.00
Key features
- Intel® Celeron J1900
- Windows or Linux operating systems
- 15.6" Touch screen LCD display
- 2x Ethernet 10/100/1000 ports
- 6x Communication ports; RS485, RS232 or RS422
- Meets all power substation requirements
- -20 to 60°C (-4 to 140°F) system operating temperature
- Compact, fanless design
- Panel mounting
- Degree of protection: IP54
Overview
DESCRIPTION
PMM0109 is a powerful, durable and fanless industrial embedded computer, powered by Intel® Celeron J1900.
This computer has a fanless cooling feature making for less moving parts providing stability, safety and efficiency for ongoing automation processes. Also, being specifically designed for industrial use it is able to manage huge workloads of any industrial process with ease.
The competitive advantage of PMM0109 that differentiates it from the other CPUs is the 15.6" touch screen with a resolution of 1920x1080, which makes the interaction with the computer smooth and precise.
It is enclosed within a durable metal chassis along with having strong internal components it has been thoroughly tested on field and proven to be able to withstand harsh environmental conditions such as shock, vibration and extreme temperature ranges.
TARGET APPLICATION
PMM0109 is made with intelligent and flexible solutions to equip the clients with all features needed to deploy their industrial applications with swiftness and reliability.
It is ideal, including, but not limited to the following target applications:
- Power Plant Controllers
- Manufacturing and industrial automation controllers
- PV optimizer
- Billing server
- Database synchronizer
- Security and surveillance
- Modbus data logger
- Database SQL
Specifications
| Processor | |
|---|---|
| CPU | Intel® Celeron J1900 |
| DRAM | 4 GB |
| Pre-installed OS | Windows 10 Pro |
| Memory | |
| Architecture | DDR3 |
| Capacity | Up to 4 GB |
| DIMM | 204-pin SODIMM |
| Computer Interface | |
| Ethernet | 2x 10/100/1000 Ports |
| Serial Communication Ports | 2x DB9 (RS-232/ RS-422/ RS485) | 2x 3 wire (RS-232/RS485) | 2x 3 wire (RS-232) |
| IO Ports | 1 x Audio Line-out | 2 x 8Ω1W output | 1 x Remote switching interface | 1 x AT/ATX dial switch | 1 x HDMI | 1 x 14bit GPIO |
| Expansion Slots | Mini-PCIE x 1 full size card | SIM slot Support 3G/4G module Mini-PCIE x 1 half size card | support WIFI blue teeth |
| USB | 4x USB 2.0 type A | 1x USB 3.0 |
| LAN | |
| LAN 1 | Intel i210 Gbe LAN controller |
| LAN 2 | Intel i210 Gbe LAN controller |
| Other | |
| Watchdog | 0 to 255 seconds programmable |
| LCD | |
| Touch Screen Type | 15.6” TFT-LCD, Capacitive touch panel |
| Power Parameters | |
| Power Supply Options | 9-36 VDC |
| Physical Characteristics | |
| Housing | Metal |
| Mounting | Panel mounting | 16 x 10 x 2.5 inch (399 x 248 x 55 mm) |
| Certifications | RoHS, CE and FCC |
