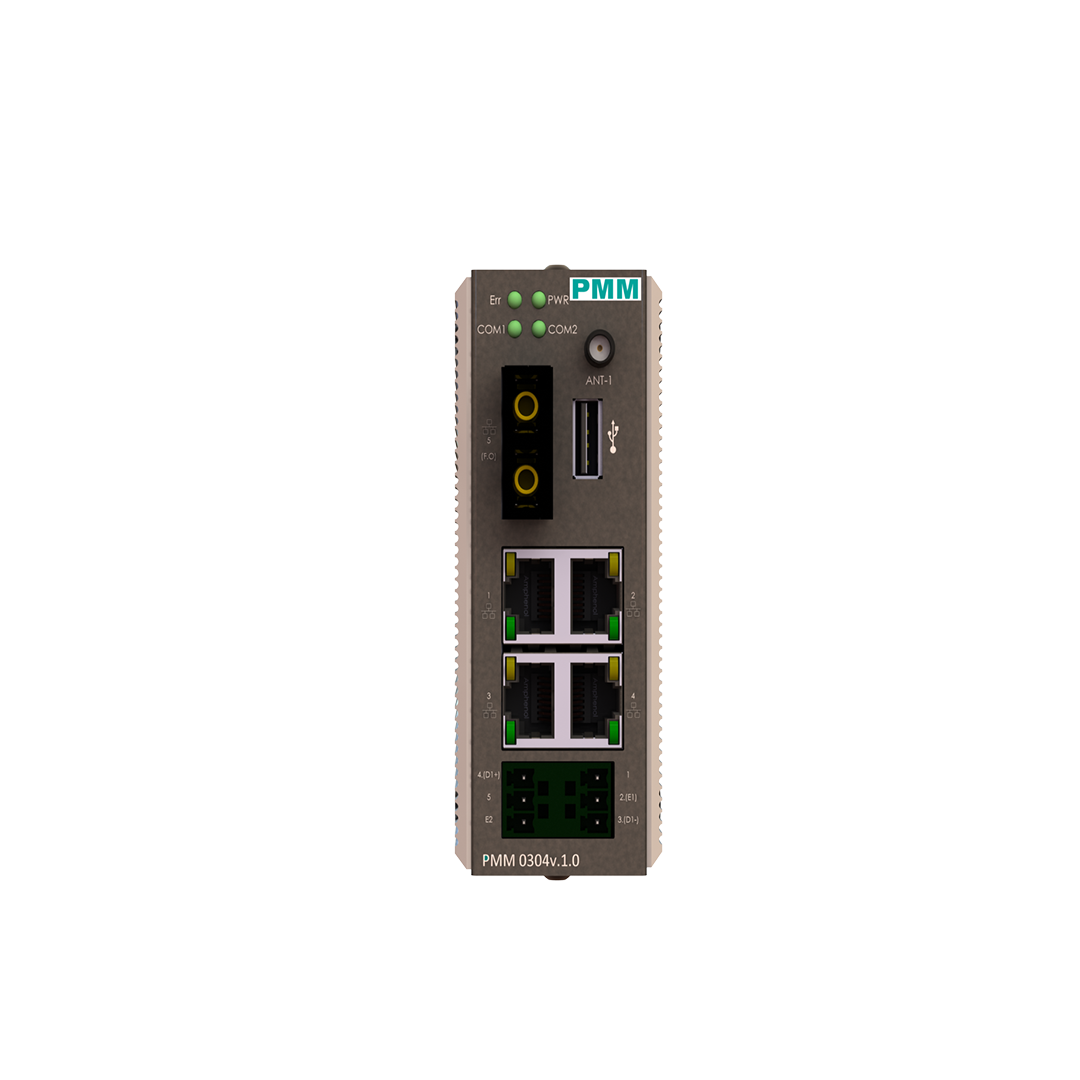

PMM0304 - 5 Ports with 1x F.O + WiFi
INDUSTRIAL ETHERNET SWITCH WITH WiFi
Price from USD 346.55
Key features
- MediaTek MT7688AN MIPS24KEc CPU
- 4x 10/100BaseT(X) (RJ45 connector)
- customized fiber optics port
- 100M PHY support IEEE802.3az at full duplex takes 0.45w
- Supports 1K MAC address entry
- Supports Auto MDI-MDIX function
- Wide range of power supply options
- Easy to Troubleshoot
- -10 to 70°C (-14 to 158°F) system operating temperature
- Wide range of mounting system
Overview
DESCRIPTION
Our ruggedized PMM0304 Industrial Ethernet switch provides enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features. PMM0304 switch delivers the performance and reliability demanded by industrial deployments in the age of the Internet of Things (IoT). PMM0304 is an industrial Ethernet switch computer powered by MediaTek MT7688AN MIPS24KEc CPU it has four 10/100M copper ports, to provide greater versatility for use with applications from different industries.
Specifications
| Computer | |
|---|---|
| CPU | MediaTek MT7688AN MIPS24KEc CPU |
| DRAM | 128 MB |
| Pre-installed OS | LINUX 2.6.36SDK/Open Wrt 3.10 |
| Technology | |
| Standard | IEEE802.3 10Base-T | IEEE802.3u 100Base-TX |
| Switch Technology | Store and forward technology and with 3.2 Gbit/s switch fabric |
| Aggregate System Throughput | 1.49 Mpps |
| Interface | |
| ports | 4x 10/100 Ethernet (RJ45) + SFP or SC1X9 |
| 10/100BaseT(X) Ports (RJ45 connector) | Auto negotiation speed | Full/half duplex mode | Auto MDI/MDI-X connection |
| Fiber optic | 40km |
| Power Parameters | |
| Power supply options | 85-265 VAC /100-300 VDC |
| Power connector | Phoenix Contact 4pins 3.5mm |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 5.27(100)x5.27(100)x1.45(37) inch (mm) |
| Mounting system | Standard 35mm din rail / direct panel mounting / front panel mounting / 19” rack 1U |
| Environmental | |
| Operating Temperature | 40 to 85°C (-40 to 185°F) |
| Operating Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | 40 to 85°C (-40 to 185°F) |
