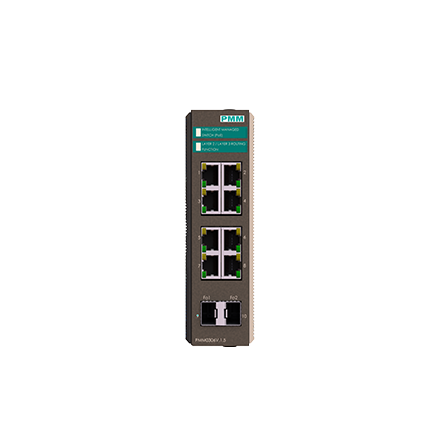

PMM0306 - 10 Ports L2/L3 Managed With 2 xF.O
INDUSTRIAL ETHERNET PoE SWITCH WITH FIBER
Price from USD 824.56
Key features
- Layer 2 / Layer 3 routing functions
- 8 Gigabit PoE ports + 2 Gigabits + 1 Console port
- Supports: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w
- Supports PoE Power Management, PoE Watchdog based on data stream detection
- Supports: IEEE802.3af (15.4w), IEEE802.3at (30w), IEEE802.3bt (90w)
- Supports: STP (802.1D, RSTP (802.1w), MSTP (802.1s), ERPS
- Supports SNMP v1/v2/v3
- Supports IGMP Snooping , Static multicast filtering and MLD Snooping
- Supports 802.1x port and AAA Certification, Enhance network security
- Supports WEB, Telnet，CLI,SSH management
- Supports lightning protection, surge: General Mode 6KV, Differential Mode2KV, ESD: 15KV
- Supports EMC EN55032 standard
- Built to meet all Power substation requirements
- Wide range of power supply options
- -40 to 85°C (-40 to 185°F) system operating temperature
- Din rail, wall, panel and rack mount options
Overview
DESCRIPTION
PMM0306 is a low-power Industrial Ethernet Switch, certified by industrial environment and supports FCC, CE, CCC and RoHS standards; reliable industrial design ensures uninterrupted automation system stable operation.
PMM switches provide advanced network management capabilities; redundant ring, loop protection, VLAN, QOS, speed control, port mirroring and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites, since it is covered by a durable metal chassis which was designed and tested on the field to withstand shock, vibration, extended temperature ranges and challenging elements of a harsh environment. All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications
APPLICATION
PMM0306 is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
Moreover, PMM0306 offers the client a wide range of interfaces covering most of the industrial standards and applications:
- Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications
Specifications
| Technology | |
|---|---|
| Network Protocols | IEEE802.3 | IEEE802.3u | IEEE802.3z | IEEE802.3ab | IEEE802.3x | IEEE802.1d | IEEE802.1w |
| PoE Parameters | PoE Standard: IEEE802.3af / IEEE802.3at | Single PoE Port Power Output: Max.: IEEE802.3af (15.4W) / IEEE802.3at (30W) | PoE Compatibility: IEEE802.3af / at adaptive | PoE Power Output: DC 48-55V | PoE Power Pin: 1/2- and 3/6+ |
| Network Media | 10BASE-T: Cat3,4,5 UTP (≤100 M) | 100BASE-TX: Cat5 or above UTP (≤100 M) | 1000BASE-TX: Cat5 or above UTP (≤100 M) |
| LED Indicator | |
| PWR | Lighting: Powered | Un-Light: No Power |
| SYS | Lighting: The system is operating normally | Un-Light: The system is not running |
| Yellow Light | Lighting: PoE is Powered | Un-Light: PoE is not Powered | Flashing: Port and device are mismatched |
| Green Light | Slow Flashing: 10/100/1000 Link normally | Un-Light: Link is disconnected | Flashing: Link data transmission |
| Hardware Parameters | |
| Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| RAM | 128MB |
| Flash | 16MB |
| Packet Buffer Memory | 4M |
| JumboFrame | 9.6kbytes |
| VLANs | 4096 |
| MAC | 8k |
| L2 Management | |
| Port Management | Supports enable / disable port | Supports speed, duplex, MTU setting | Supports flow control flow control settings | Supports port mirroring | Supports in / out direction | Supports port speed limit | Supports port isolation setting | Unknown unicast, multicast, broadcast storm suppression |
| STP | Standard Spanning Tree (STP) 802.1d | Rapid Spanning Tree (RSTP) 802.1w | Multiple Spanning Tree (MSTP) 802.1s |
| Ring Network Protocol | ERPS |
| Link Aggregation | Supports static manual aggregation | Supports LACP dynamic convergence |
| VLAN | Supports static VLAN and IEEE8021Q VLAN |
| IGMP Snooping | Supports static add / delete |
| L3 (Layer 3 Switching) and Router Function | |
| Interface Configuration | Supports virtual VLAN interface |
| ARP | Support check ARP |
| Extended Function | |
| ACL | Based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number | Support time-range time management |
| QOS | Based on 802.1p (COS) classification | Based on DSCP classification | Based on the source IP, destination IP, port number classification | Support SP, WRR, DRR scheduling strategy | Support traffic speed limit CAR |
| LLDP | Support LLDP |
| User Setting | Support add/delete user |
| Log | User login, operation, status, event log |
| Port Security | Dyning Gasp, Snmp Trap |
| Prevent Attack | DOS defense | Support for CPU protection, limited to send CPU message rate | ARP binding (IP, MAC, PORT binding) |
| Management Function | |
| CLI | Supports serial command line management |
| TELNET | Supports serial command line management |
| SSH | Supports SSHv1/2 remote management |
| SNMP | Supports v1/2/3 |
| WEB | Supports two layers of settings |
| PoE | PoE Power management |
| Physical Structure | Protect grade: IP40 | Installation: DIN Rail | Product weight: 0.8KG | Package weight: 1.1KG | Product Dimensions (L*W*H): 165mm*130mm*65mm | Package Dimensions (L*W*H): 245mm*21mm*88mm | Standard packing (L*W*H): 600mm*495mm*435mm | Standard packing quantity: 28(PCS) |
| Working Environment | Operating temperature: -40~85oC | Storage temperature: -40~85oC | Humidity: 5%~95% (No condensation) |
| Industry Standard | EMI: FCC part 15, CISPR (EN55032) class A | EMS: En61000-4-2 (ESD) | EN61000-4-4 (EFT) | EN61000-4-5 (Surge) | Shock: IEC 60068-2-27 | Free fall: IEC 60068-2-32 | Vibration: IEC 60068-2-6 |
| Certification | CE mark, commercial | FCC part 15, class B | VCCI, class B | EN 55032, class A |
| MTBF | 100,000 hours |
| Packing List | 1. Industrial grade switch: 1Set | 2. Instruction manual: 1 Pcs | 3. Certificate, warranty card: 1 Pcs | 4. Serial cable: 1 Pcs | 5. Operation manual CD: 1 Pcs |
