PMM0402 - DLMS to Modbus
DLMS - Modbus Protocol Gateway
Price from USD 363.50
Key features
- Supports up to 10 meters with single converter .
- Tested with all major meter brands such as: Iskraemeco, Landis+Gyr, EMH meter, Actaris SL7000,Elster A1700, Elster A1500, KAMSTRUP, DPEE, ...etc
- Supports Modbus RTU/TCP
- Effortless configuration via web-based server
- Embedded traffic monitoring as well as diagnostic information for easy trouble shooting
- MicroSD card for configuration backup and duplication for event logs
- Status monitoring and fault protection for easy maintenance
- Redundant dual power inputs (DC-DC) or (AC-DC)
- Operating temperature: -40 to 75°C (-40 to 167°F)
- EMI, EMS, EMC and shock protected
- Serial port with power surge 2kV isolation protection
- Security features based on IEC 62443
Overview
DESCRIPTION

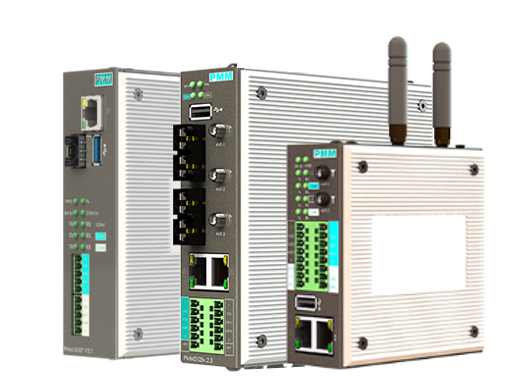

PMM0402 is a highly configurable industrial ethernet gateway device which is capable of reading data from any device containing DLMS protocol like energy meters, and converting it to RTU/TCP Modbus protocol. PMM0402 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect to the SCADA system.
PMM0402 gateways support a system log function that record events; users can easily review log data remotely through a web interface. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies the SCADA system. When a device gets disconnected or does not respond, in such case the SCADA system gets the status of each end device and then issues alarms to notify operators.
PMM0402 can be contained within multiple hardware chassis which are designed with a wide range of highly configurable communication ports needed in the field. All hardware chassis are rugged, powerful, reliable, fanless and cover a wide range of power supply options that offer a high level of performance and low level of power consumption. The system is especially designed to meet all power substation requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
Specifications
| Software - Ethernet Software Features | |
|---|---|
| Protocols | Modbus TCP |
| Configuration Options | Web Server and Device Search Utility |
| Hardware - Computer | |
| CPU | All winner H5 processor, Quad-core 64-bit high-performance Cortex A53 | All winner H5 processor, Quad-core 64-bit high-performance Cortex A53 | Intel® Atom™ x5-Z8350 CPU3 |
| DRAM | 512 DD3RAM | 1 GB | 4GB DD3RAM |
| Storage | 8GB eMMC | N/A | 16GB eMMC |
| RTC CHIP | DS3231 | DS3231 | CR2032 |
| Pre-installed OS | Linux | Linux | Windows 10 lite |
| Software - Serial Software Features | |
| Protocols | Modbus TCP , Modbus RTU |
| Configuration Options | Serial Console |
| Hardware - Computer Interface | |
| Ethernet | 2x 10/100Base Ports | 2x 10/100Base Ports | 1x 10/100/1000Base-T RJ45 |
| Fiber | 1x 1000Base-X SFP | 2x 1000Base-X SC fiber optic port | 1x 1000Base-X SFP |
| USB | 1x USB3.0 Type A 1x Micro USB | 1x USB2.0 type A | 1x USB3.0 Type A |
| Wi-Fi | BL-R7601MU5 | 2.4/5GHz | MediaTek RT5572 2.5/5GHz/2x2 with external antennas |
| Serial | 1x RS485 | 1x RS485 | 1x RS485 |
| Optional Interface | 3x customizable communication slots: PMM RS485 Module PMM RS232 Module PMM RS422 Module | 2x customizable communication slots: PMM RS485 Module PMM RS232 Module PMM RS422 Module | 8 pins connector with following options (max 2 options can be chosen) RS232 RS485 RS422 CAN bus Analog Input Analog Output Digital Input Digital Output |
| SD Slot | 1x MicroSD | 1x MicroSD | 1x MicroSD card socket for user supplied card up to 256GB |
| Hardware - Power Parameters | |
| Power Supply Options | 10-56 VDC 8-40 VAC 36-72 VDC 25-50 VAC 85-285 VAC / 100-300 VDC | 10-56 VDC 8-40 VAC 36-72 VDC 25-50 VAC 85-285VAC / 100-300 VDC | 10-56 VDC 8-40 VAC 36-72 VDC 25-50 VAC 85-285VAC / 100-300 VDC |
| Power Connector | Phoenix Contact 4 pins 3.5mm | Phoenix Contact 6 pins 3.5mm | Phoenix Contact 4 pins 3.5mm |
| Hardware - Physical Characteristics | |
| Housing | Metal | Metal | Metal |
| Dimensions | 3.93x3.93x1.45 inch (100x100x37 mm) | 5.27x5.27x1.45 inch (134x134x37 mm)Contact 6 pins 3.5mm | 5.27x5.27x1.45 inch (134x134x37 mm) |
| Mounting Options | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U |
