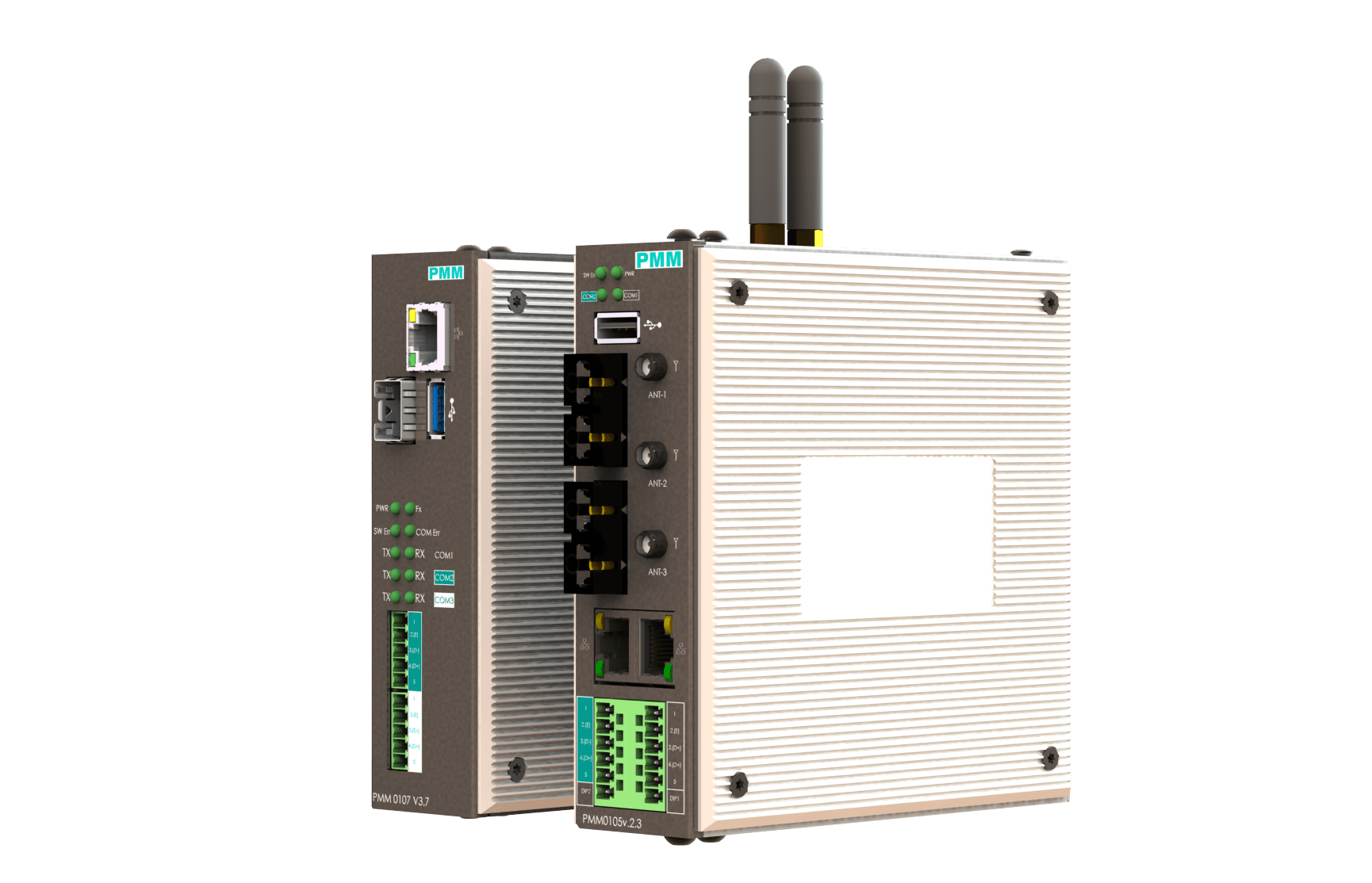

PMM0403 - IEC101/104 to Modbus
IEC 101/104 - MODBUS API
Price from USD 500.00
Key features
- Many hardware options to fit your needs
- Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101 IEC 60870-5-104
- Supports IEC 60870-5-101 master/client and slave/server and IEC 60870-5-104 master/client and slave/server
- Supports stnadard Modbus RTU/TCP.
- Easy configuration via Web-based Server
- Status monitoring and fault protection for easy maintenance
- MicroSD card for configuration backup and duplication for event logs option
- Multiple PMM Hardware Chassis to choose from with wide range of configurable communication ports
- Hardware chassis meet all power substations and PV plants requirements covering all field standards of power, reliability, easy configuration and long-lasting life
Overview
DESCRIPTION
PMM0403 is a highly configurable industrial Ethernet gateway device which is capable of performing protocol conversion between Modbus and IEC Networks. It supports Modbus RTU/TCP, IEC 60870-5-101 and IEC 60870-5-104 network communications. PMM0403 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect to the SCADA system.
This converter can be used as a Modbus master/client or IEC 60870-5-101 master to collect and exchange data with IEC 60870-5-104 systems.
PMM0403 gateways support a system log function that records events; users can easily review log data remotely through a web interface. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies the SCADA system. When a device gets disconnected or does not respond, in such case the SCADA system gets the status of each end device and then issues alarms to notify operators.
PMM0403 can be contained within multiple hardware chassis which are designed with a wide range of highly configurable communication ports needed in the field. All hardware chassis are rugged, powerful, reliable, fanless and cover a wide range of power supply options that offer a high level of performance and low level of power consumption. The system is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
Specifications
| Software - Ethernet Software Features | |
|---|---|
| Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave), IEC 60870-5-104 Client, IEC 60870-5-104 Server |
| Configuration Options | Web (HTTP/HTTPS) |
| Time Management | NTP Client |
| Software - Serial Software Features | |
| Serial Software Features | Modbus RTU/ASCII Master | Modbus RTU/ASCII Slave | Modbus RTU/ASCII Slave, | IEC 60870-5-101 Slave (Balanced/Unbalanced) |
| Configuration Options | Web (HTTP/HTTPS) |
| Software - Modbus TCP | |
| Mode | Client (Master) | Server (Slave) |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Client Connections | 32 |
| Max. No. of server Connections | 32 |
| Max. No. of Commands | 256 |
| Software - IEC 60870-5-104 | |
| Mode | Client | Server |
| Max. No. of Client Connections | 32 |
| Max. No. of Server Connections | 32 |
| Max. No. of Information Objects | 2000 points |
| Software - Modbus RTU/ (ASCII Optional) | |
| Mode | Master | Slave |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Commands | 256 |
| Software - IEC 60870-5-101 | |
| Mode | Master (Balanced/Unbalanced) | Slave (Balanced/Unbalanced) |
| Max. No. of Master Connections | 1 |
| Max. No. of Slave Connections | 1 (Balanced), | 31 (Unbalanced) |
| Max. No. of Information Objects | 2000 points |
| Hardware - Computer | |
| CPU | Intel® Atom™ x5-Z8350 CPU | Intel® Atom™ x5-Z8350 CPU |
| DRAM | 4GB DD3RAM | 1 GB |
| Storage | 16GB eMMC | N/A |
| RTC CHIP | CR2032 | DS3231 |
| Pre-installed OS | Windows | Linux |
| Hardware - Computer Interface | |
| Ethernet | 1x 10/100/1000Base-T RJ45 | 2x ports 10/100 |
| Fiber | 1x 1000Base-X SFP | 2x 1000Base-X SC fiber optic port |
| USB | 1x USB3.0 Type A | 1x USB2.0 type A |
| Wi-Fi | 2.4/5GHz | 2.4/5GHz |
| Serial | 1x RS485 | 1x RS485 |
| Optional Interface | 3x customizable communication slots: PMM RS485 Module PMM RS232 Module PMM RS422 Module | 2x customizable communication slots: PMM RS485 Module PMM RS232 Module PMM RS422 Module |
| SD Slot | 1x MicroSD | 1x MicroSD |
| Hardware - Power Parameters | |
| Power Supply Options | 10-56 VDC 8-40 VAC 36-72 VDC 25-50 VAC 85-285 / 100-300 VDC | 10-56 VDC 8-40 VAC 36-72 VDC 25-50 VAC 85-285 / 100-300 VDC |
| Power Connector | Phoenix Contact 4 pins 3.5mm | Phoenix Contact 6 pins 3.5mm |
| Hardware - Physical Characteristics | |
| Housing | Metal | Metal |
| Dimensions | 5.27*5.27*1.45 inch (134*134*37 mm) | 5.27*5.27*1.45 inch (134*134*37 mm) |
| Mounting Options | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U |
