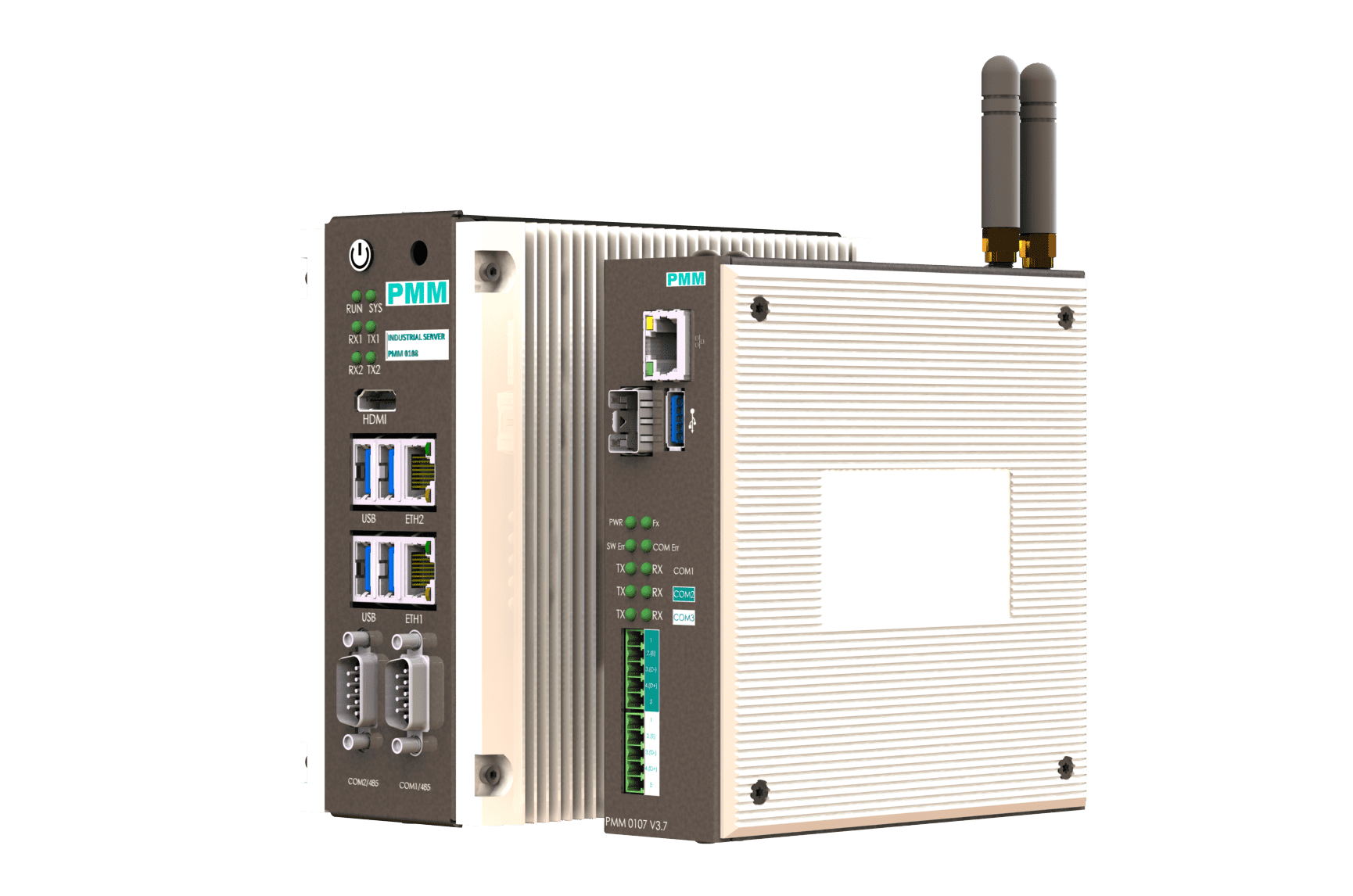

PMM0405 - Schneider ION to API
ION-API - Meter configuration and verification utility
Price from USD 490.00
Key features
- Very simple Web-API to reach ION meters data with many Hardware options to fit your needs
- Unlimited applications, configuration and solutions across any power system
- Simplifies power quality and AMR programming
- Adaptable to any custom framework or operating system
- Effortless configuration via web-based server
- Embedded traffic monitoring as well as diagnostic information for easy trouble shooting
- MicroSD card for configuration backup and duplication for event logs
- Status monitoring and fault protection for easy maintenance
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85 °C (-40 to 185°F)
- EMI, EMS, EMC and shock protected
- Serial port with power surge ±2.5kV isolation protection
- Enclosure Ingress Protection Code: IP54
Overview
DESCRIPTION
PMM ION API and industrial hardware communicates effectively with PowerLogic PM800, CM3000 and CM4000 series power meters from Schneider .integrating Schneider meter with PMM SCADA or any monitoring system never been easier with PMM API.
Specifications
| Hardware - Computer | |
|---|---|
| CPU | Intel® Atom™ x5-Z8350 CPU | Intel® Apollo Lake Series J3355 |
| DRAM | 4GB DD3RAM | DDR3L Up to 8GB |
| Storage | 16GB eMMCeMMC | SSD 1*full size mSATA SSD |
| RTC CHIP | CR2032 |
| Pre-installed OS | Windows 10 lite | Windows 10 or Linux Ubuntu |
| Hardware - Computer Interface | |
| Ethernet | 1x 10/100/1000Base-T RJ45 | 24x 10/100/1000 RJ-45 |
| Fiber | 1x 1000Base-X SFP | N/A |
| USB | 1x USB3.0 Type A | 4 x USB3.0/2.0/1.1 |
| Wi-Fi | 2.4/5GHz | N/A |
| Serial | 1x RS485 | 2x RS232 (RS-232/485 Optional) |
| Optional Interface | 3x customizable communication slots: PMM RS485 Module PMM RS232 Module PMM RS422 Module PMM CAN Bus Module PMM IO Module | N/A |
| SD Slot | 1x MicroSD | N/A |
| Hardware - Power Parameters | |
| Power Supply Options | 85-265 VAC / 100-300 VDCM 10-48 VAC / 10-60 VDC Direct inputs 5 VDC / 3 A | 9-30V DC +- 10% |
| Power Connector | Phoenix Contact 4 pins 3.5mm |
| Hardware - Physical Characteristics | |
| Housing | Metal | Metal |
| Dimensions | 5.27*5.27*1.45 inch (134*134*37 mm) | 145mm*145mm*75mm (5.71"*5.71"*2.95") |
| Mounting Options | Standard 35mm DIN Rail Direct Panel Mounting Front Panel Mounting 19” rack 1U | Standard 35mm DIN Rail |
