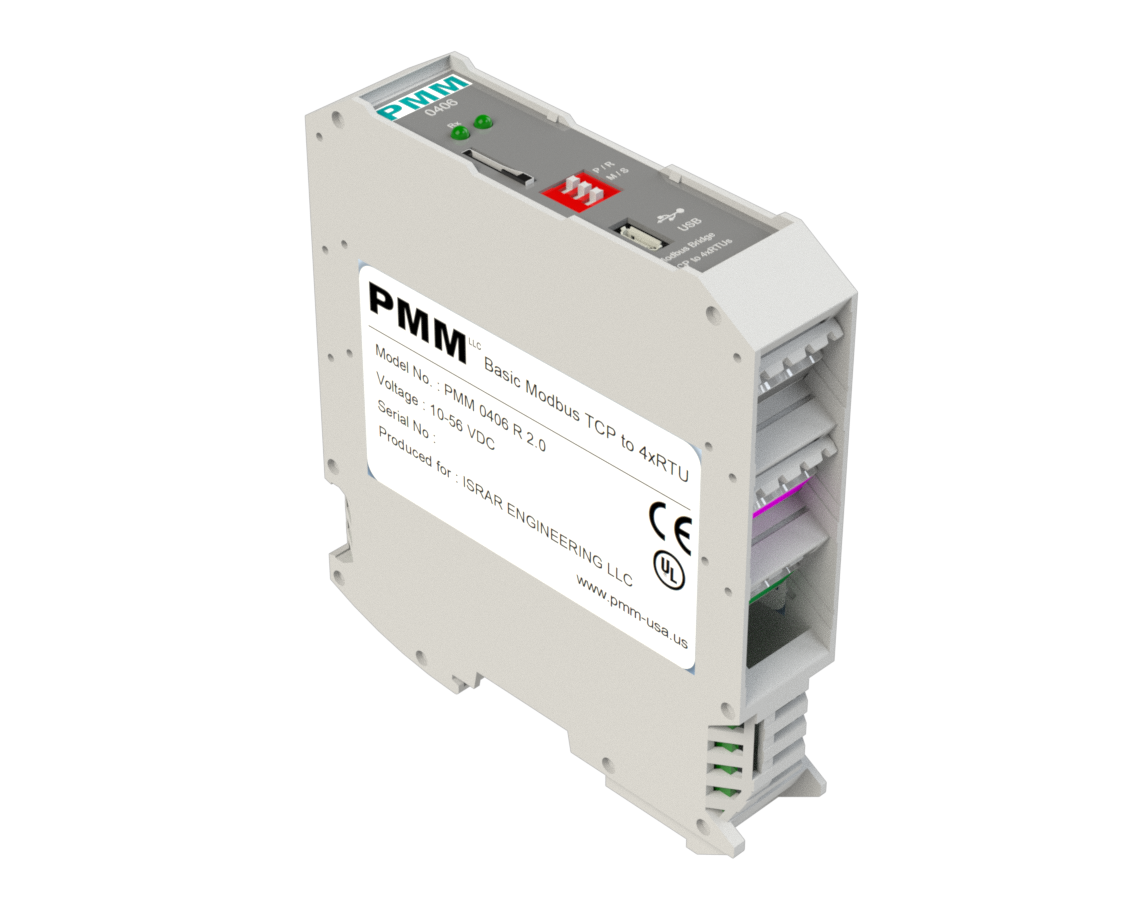

PMM0406 - TCP/UDP to 4x Serial ports Bridge

Modbus Bridge TCP to 4xRTUs

Price from USD 195.00

Key features

• Converts smoothly Between Modbus TCP to 4 x RTU
• Up to 5 simultaneous TCP masters
• Effortless configuration via web-based Server
• 32-bit ARM core microcontroller, with 48 MHz clock
• Embedded traffic monitoring as well as diagnostic information for easy trouble shooting
• 4x RS485 Serial communication ports
• Baud rate: 110-256000 bps
• Supports 2-32 GB SD card for configuration backup and duplication for event logs and settings
• Different Power supply options with over voltage and reverse polarity protection
• 120Ω termination resistor controlled by dip switch
• Operating temperature: -40 to 75°C (-40 to 167°F)
• Storage temperature: -40 to 85°C (-40 to 185°F)
• Ambient relative humidity 5 to 95% (non-condensing)
• EMI, EMS, EMC and shock protected
• Serial port with power surge ±2.5kV isolation protection
• Enclosure Ingress Protection Code: IP54

Overview

DESCRIPTION

PMM0406 is a highly configurable industrial Ethernet gateway device capable of quick protocol conversion on Modbus TCP/RTU Networks.

Modbus slave devices are effortlessly incorporated into an existing Modbus TCP network, where slave devices are easily reached by their respective masters. PMM0406 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect any type of industrial solution network such as the SCADA system.

PMM0406 gateways support a system log function that records events; users can easily review log data remotely through the web interface. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a Power SCADA system. When a device gets disconnected or does not respond, in such case the SCADA system gets the status of each end device and then issues alarms to notify operators.

Specifications

Downloads

• pmm0406
