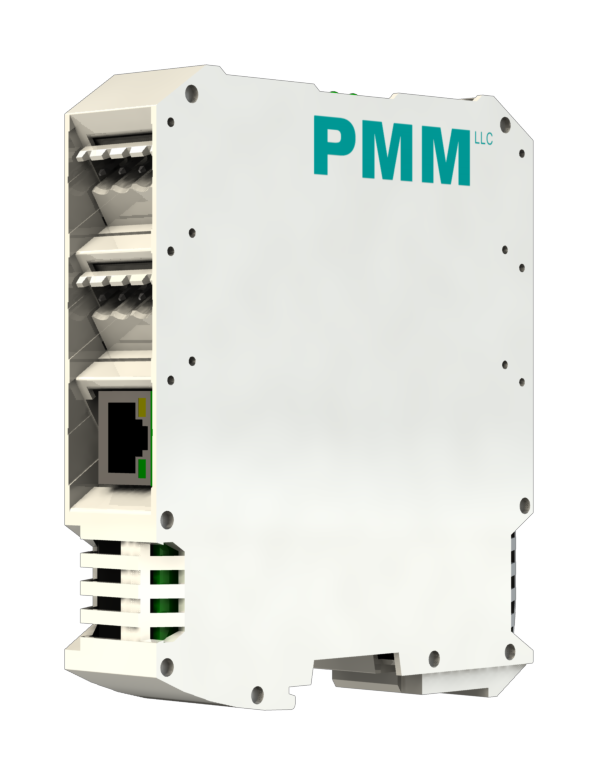

PMM0501 - Ethernet - 4x RS485
Ethernet - Serial (Rs485) Converter
Price from USD 140.00
Key features
- Converts smoothly Between Ethernet to serial Rs485 (bridge)
- Up to 4 simultaneous Ethernet masters
- Can be used as Modbus converter through using any port forwarder software
- Effortless configuration via web-based server
- 2 or 4 serial Rs485 ports options
- Baud rate: up to 115200Kbs
- Operating temperature: -40 to 75°C (-40 to 167°F)
- EMI, EMS, EMC and shock protected
- 10-56VDC Supply voltage with Overvoltage and reverse polarity protection
- Serial port with power surge ±2.5kV isolation protection
Overview
DESCRIPTION
PMM0501 hardware provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect any type of industrial solution network such as the SCADA system. This slave device is effortlessly incorporated into an existing Modbus TCP network from any Modbus RTU device.
PMM0501 industrial grade media converter can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
APPLICATIONS
PMM0501 can perform efficiently and effectively in the PV, substation and industrial applications as:
- Ethernet - Rs485 General Converter
Specifications
| Interfaces | |
|---|---|
| Serial | 2 or 4 customized Serial ports on ordering: | Isolated RSR85/RS422/RS232 port |
| Ethernet | 1x 10/100/1000Base-T RJ45 |
| LED Indicators | 2x LED for full duplex |
| Power Parameters | |
| Input Power Supply Options | 10-48 VAC / 10-60 VDC |
| Power Connector | Phoenix Contact 4 pins 3.5mm |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | Dimensions 4.05*4.05*1.45 inch (103 x 103 x 36.83 mm) |
| Mounting Options | DIN Rail |
