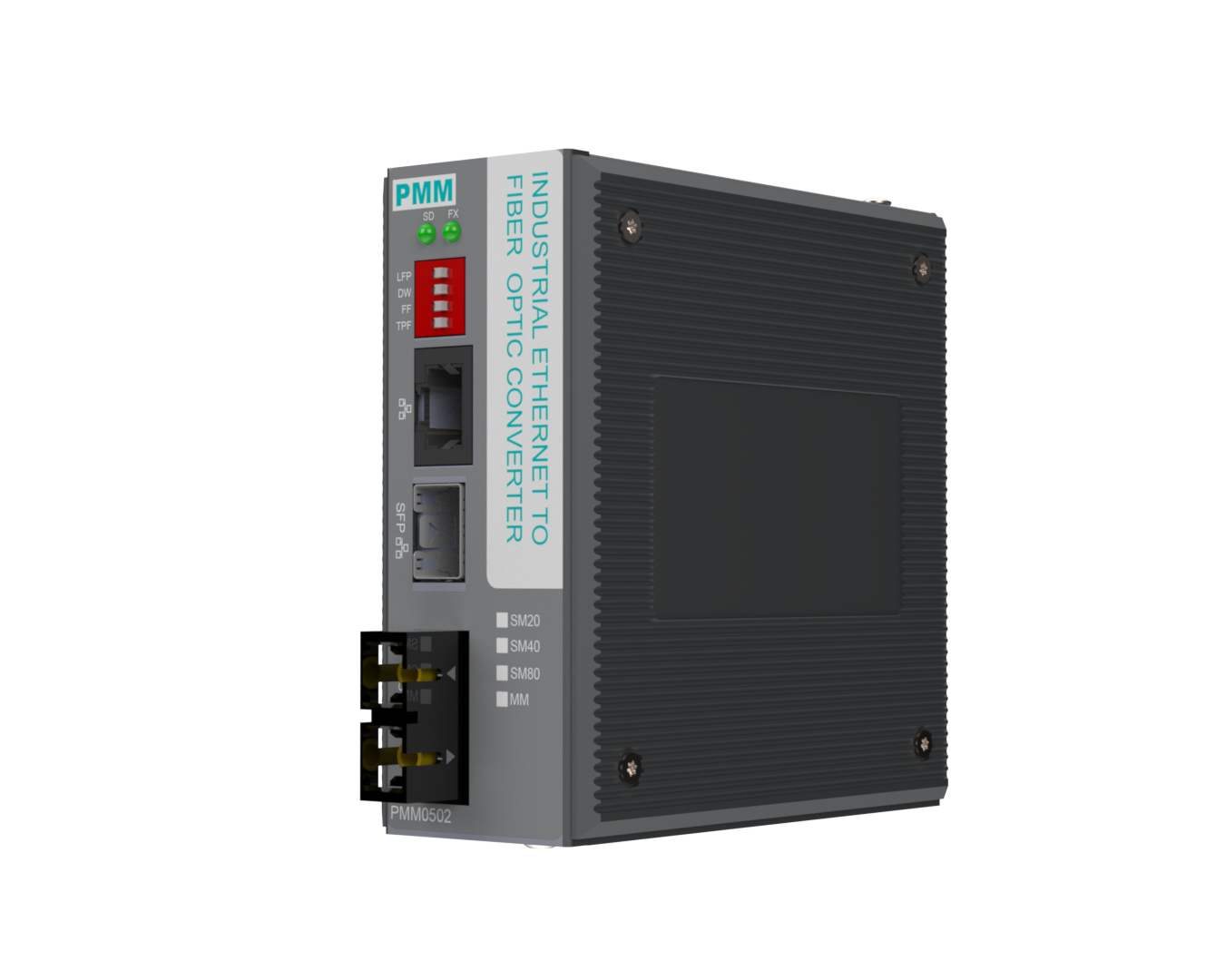

PMM0502 - Ethernet - F.O
Ethernet - Fiber Converter
Price from USD 150.00
Key features
- Supports auto MDI-MDIX function
- DIP switch for selecting connector type SFP/SC
- DIP switch allows LFP
- Configurable store/forward modes
- 10/100BASE-TX/ 100BASE-FX converter
- Supports far end fault function
- Supports auto MDI-MDIX function
- Supports link fault pass through function
- 10-56VDC Supply voltage with Overvoltage and reverse polarity protection
- Meets all power substation requirements
- Din Rail, wall mount, panel mount and rack mount options
- Compact size with fanless design
Overview
DESCRIPTION
PMM0502 is a fiber to Ethernet media converter . It allows you to connect twisted-pair networks or devices to fiber optic network links. This allows you to transfer data over secure, high-speed fiber optic cable.
PMM0502 industrial grade media converter can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
This device can be ordered with multiple power supply ratings to select from.
APPLICATION
PMM0502 can perform efficiently and effectively in the PV, substation and industrial applications as:
- Ethernet - SFP Fiber Converter
- Ethernet - SC Fiber Converter
Specifications
| Interfaces | |
|---|---|
| Fiber | 2x customized fiber optics ports on ordering: | 2XSC , 2XSFP or 1XSC & 1XSFP port |
| Ethernet | 1x 10/100/1000Base-T RJ45 |
| LED Indicators | 2x LED for full duplex and Fiber SD (Signal Detect) |
| Power Parameters | |
| Input Power Supply Options | 85-265 VAC / 100-300 VDC | 10-48 VAC / 10-60 VDC | Direct inputs 5 VDC / 3 A |
| Power Connector | Phoenix Contact 4 pins 3.5mm |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | Dimensions 4.05*4.05*1.45 inch (103*103*1.45 mm) |
| Mounting Options | DIN Rail | Panel Mounting | Wall Mounting | 19” Rack 1U |
