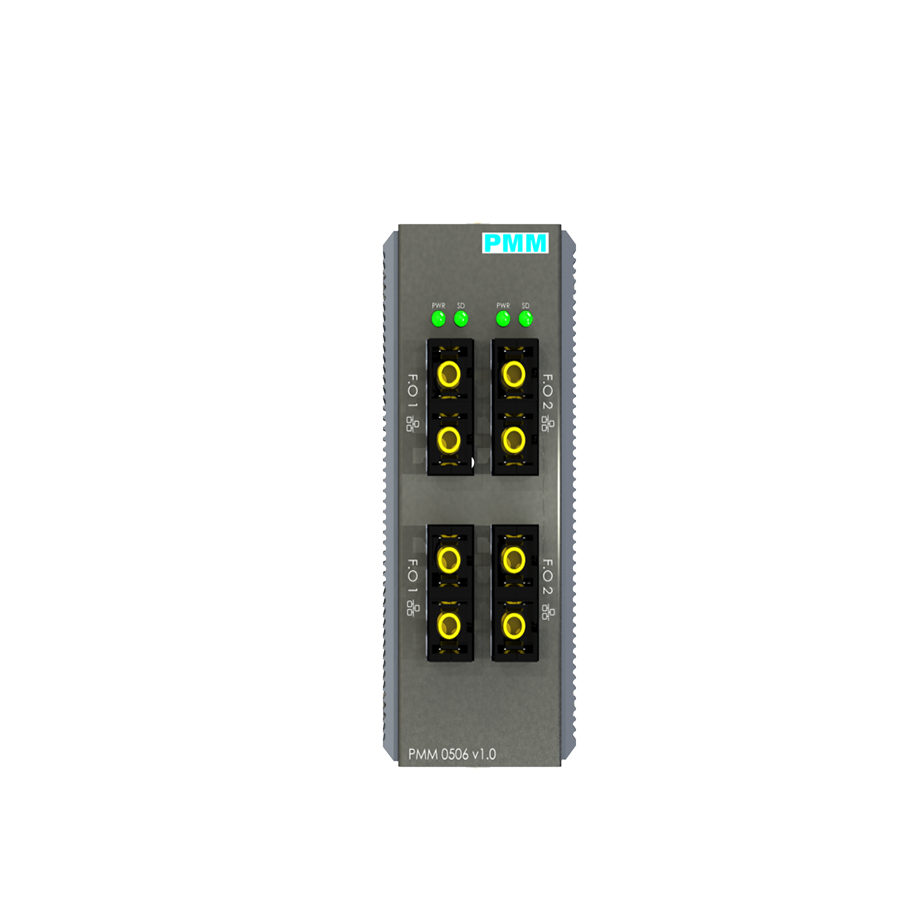

PMM0506 - Fiber to Fiber Converter
Fiber to Fiber Media Converter
Price from USD 238.00
Key features
- 4x fiber optic ports
- Supports single to multimode conversion
- Supports 10/100Mbps data transfer rates to meet a wide range of requirements
- Meets all power substation requirements
- Wide range of power supply options
- Din Rail, wall mount, panel mount and rack mount options
- -40 to 85°C (-40 to 185°F) system operating temperature
Overview
DESCRIPTION
PMM506 is a fiber to fiber media converter and repeater. The device can convert two digital optical signals of SC1X9 modules or SFP, which have the same speed, between different wavelengths, different distances and different modes (single mode, multi-mode, UTP, fiber optics).
PMM0506 industrial grade media converter can function under the harsh environmental conditions of any site. It is especially designed to meet all power substations and PV plants requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
This device can be ordered with multiple power supply ratings to select from.
APPLICATION
PMM0506 can perform efficiently and effectively in the PV, substation and industrial applications as:
- Single to Multimode Media Converter
- Single Mode Dual Fiber to Single Mode Single Fiber Converter
- Fiber-Fiber Repeater
Specifications
| Interfaces | |
|---|---|
| Fiber | 2x SC ports |
| LED Indicators | 2x LED for power | Fiber SD (Signal Detect) |
| Power Parameters | |
| Input Power Supply Options | 85-265VAC / 100-300VDC | 10-48VDC / 5VDC / 3A |
| Power Connector | Pheonix Contact 4 pins 3.5mm |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 4.05 x 4.05 x 1.45 inch (103 x 103 x 1.45 mm) |
| Mounting Options | DIN Rail | Panel Mounting | Wall Mounting | 19” Rack 1U |
