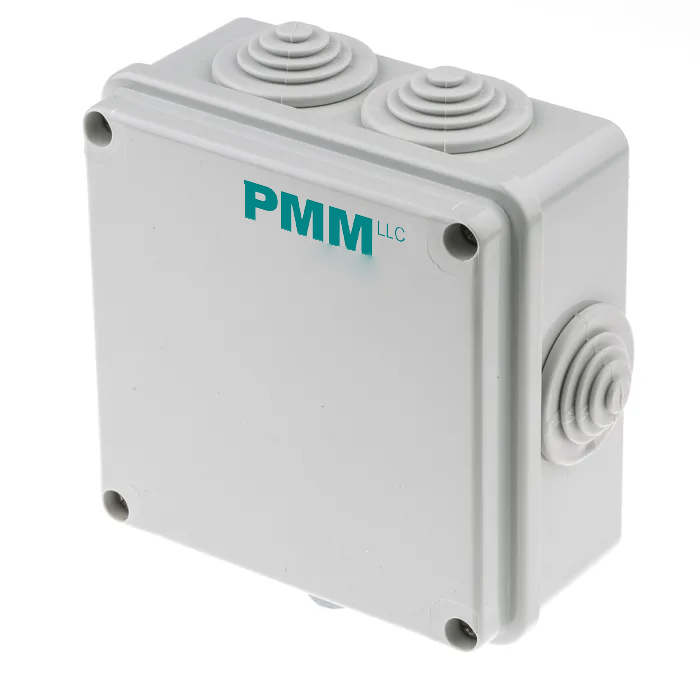

PMM0507 - GPS Antenna to RS485 Converter
PMM0507
Price from USD 190.00
Key features
- IP65 outdoor Industry standard GPS antenna with extremely high sensitivity: -161dBm
- High-precision TCXO of KDS 0.5PPM
- Built-in SQI flash to set the parameters as required
- Optional frequency of data refreshing: 1Hz-10Hz
- Supports A-GPS service: Assist Now Online and Assist Now Offline
- Two wires Serial RS485 communication with Baud rate 9600bps(default) [supports:4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800,9 21600] TTL
- Hybrid engine: GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Operating temperature: -40°C to 85°C (-40 to 185°F)
- Module Size 100x100x60mm (4.0 x 4.0 x 2.25 Inch)
Overview
DESCRIPTION
PMM0507 is an innovative, and simple to set up GPS Antenna to RS485 Converters. PMM0507can detect longitude, latitude, altitude, speed, orientation with high accuracy due to his extremely high sensitivity, it has the ability to communicate with up to 32 devices on bus over RS485 port.
Specifications
| Technical Parameters | |
|---|---|
| Chip | UBX-M8030-KT |
| C/A (Data Rate) | 1.023MHz |
| Receiving Frequency | L 1 [1575.42MHz] |
| Receiving Channel | 56 |
| S11 SWR | ≤ 1.3 |
| S21 Log Mag | ≥20db |
| S11 Smith | 50Ω±5% |
| Positioning properties | |
| Horizontal Position | Autonomous<2.5m on average, SBAS<2.0m on average |
| Speed | ˂0.1 m/s |
| Timing Accuracy | 30ns |
| Coordinate System | WGS-84 |
| Max Speed | 500m/s |
| Accelerate | ≤4G |
| Electrical Properties | |
| Sensitivity | Tracking: -162dBm, capturing: -160dBm, Cold Start: -148dBm |
| Cold Start | 26 seconds on average |
| Warm Start | 24 seconds on average |
| Hot Start | 1 second on average |
| A-GPS | 3 seconds |
| Optional Data Baud | 9600bps (by default) [optional: 1200,2400,4800, 19200, 38400, 57600, 115200, | 230400,460800,921600] |
| Optional Output Code | NMEA 0183 V3.0(GGA, GSA, GSV, RMC, VTG, GLL) |
| Working Environment | -40℃ to 85℃ (-40 to 185°F) |
| RS485 Interface | |
| Supports Baud Rate | Tracking: -162dBm Capturing: -160dBm Cold Start: -148dBm |
| Transmittance Distances | 3 seconds |
| Operating Temperature | -40 to 800℃ |
| Terminal Resistors | 120 Ohm |
| Support Multi-Machine Communication | Allowing access for up to 32 devices on bus |
| Power Parameters | |
| Power Supply Options | 9-56 VDC |
| Physical Parameters | |
| Housing | Plastic |
| Degree of Protection | IP165 |
| Dimensions | 105 x 105 x 65 mm | (4.1 x 4.1 x 2.56 inch) |
| Certifications | RoHS, CE and FCC |
