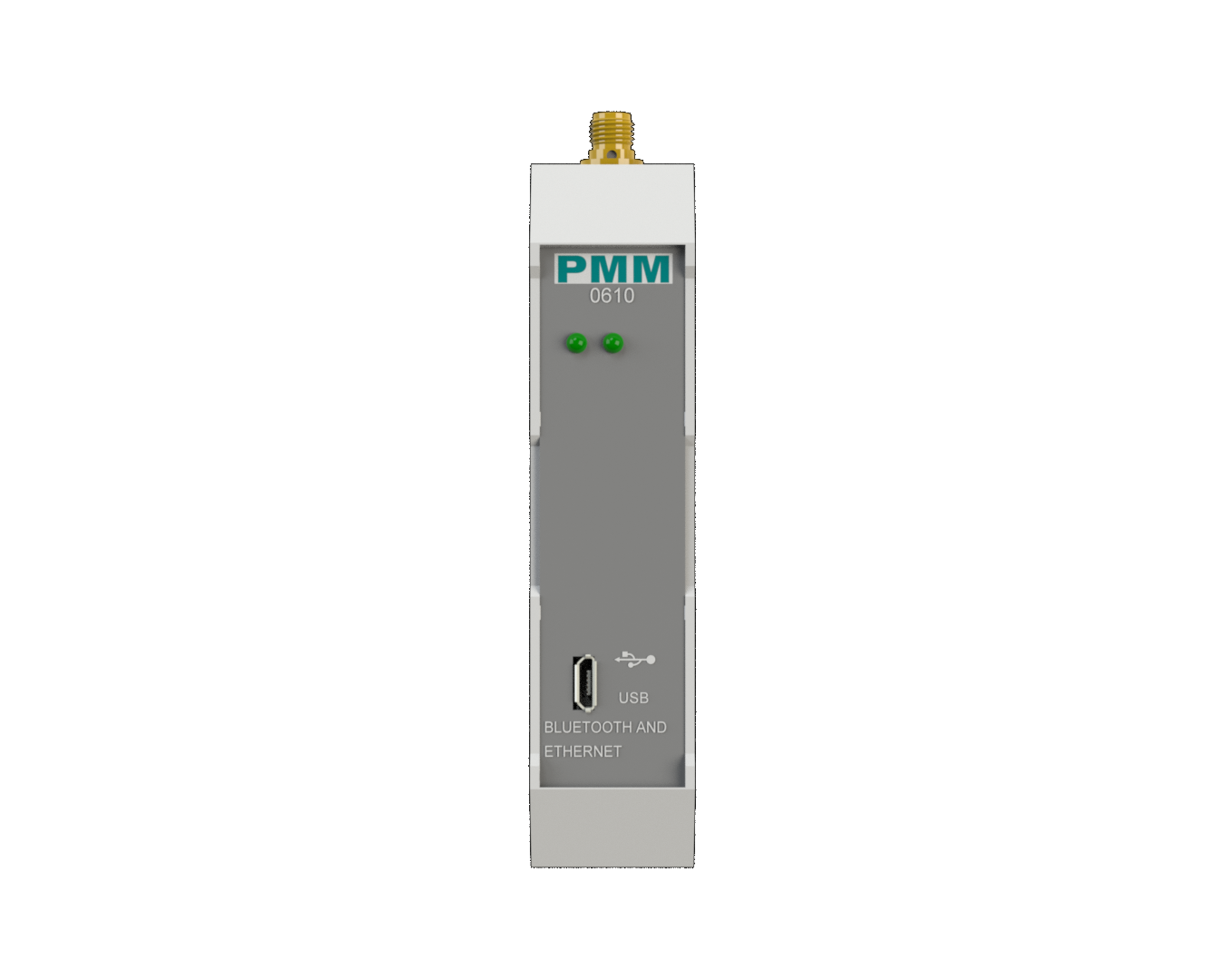

PMM0610-032 - Base (Bluetooth and Ethernet)
Base (Bluetooth and Ethernet)
Price from USD 183.60
Key features
- Easy to use, install and configure module
- The ability to have 5 concurrent connections
- Bluetooth v2.1+EDR
- Supports wide range up to 300 meters
- Built-in antenna with a unique half globe radio coverage pattern making installation easy and cost effective
- Low Emission Mode to handle potential wireless interference
- 1x Ethernet interface 10/100Base-T
- 1x RS485 with power surge ±2.5kV isolation protection
- Overvoltage and reverse polarity protected
- Meeting several industrial standards
- Wide range of power supply options (10-60 VDC)
- Onboard Termination resistor via dip switch
- EMI, EMS, EMC, and shock protected
- IP45-classed housing with integrated antenna
- Standard din rail mounting option
- -40 to 85 °C Operating temperature
- 5% to 90% Non-condensing Relative Humidity
Overview
PMM0610 is a base (Bluetooth and Ethernet) communication module that replaces seamlessly the ethernet connection with rugged and maintenance free Bluetooth connection where needed in tough applications.
PMM0610 is easy to use, install and configure module. In addition to, low emission feature which solves potential interference between Bluetooth and Wireless LAN that is not handled by Adaptive Frequency Hopping.
Furthermore, PMM0610 supports 2.4GHz WLAN 802.11 b, g, n, 5GHz WLAN 802.11 a, n and Dual-band WLAN 802.11 a, b, g, n.
Specifications
| Wireless Specifications | |
|---|---|
| Bluetooth | v2.1+EDR |
| Radio, Chipset and Stack | |
| Max range | v2.1+EDR |
| Max output power including antenna | 13dBm |
| 2.4 GHz channels | 1-79 |
| Interfaces | |
| Serial | 1x RSR85 port |
| Ethernet | 1x 10/100 RJ45 |
| USB | 1x USB2.0 Type micro-B |
| LED Indicators | 1x LED for Tx and 1x LED for Rx for communication over RS485 port indication |
| Power Parameters | |
| Input Power Supply Options | 10-60 VDC (10-48 VAC) |
| Physical Characteristics | |
| Housing | Polyamide (Nylon 6.66)/PA |
| Dimensions | 3.91x4.44x0.99 inch (99.4x113x22.6 mm) |
| Degree of protection | IP45 |
