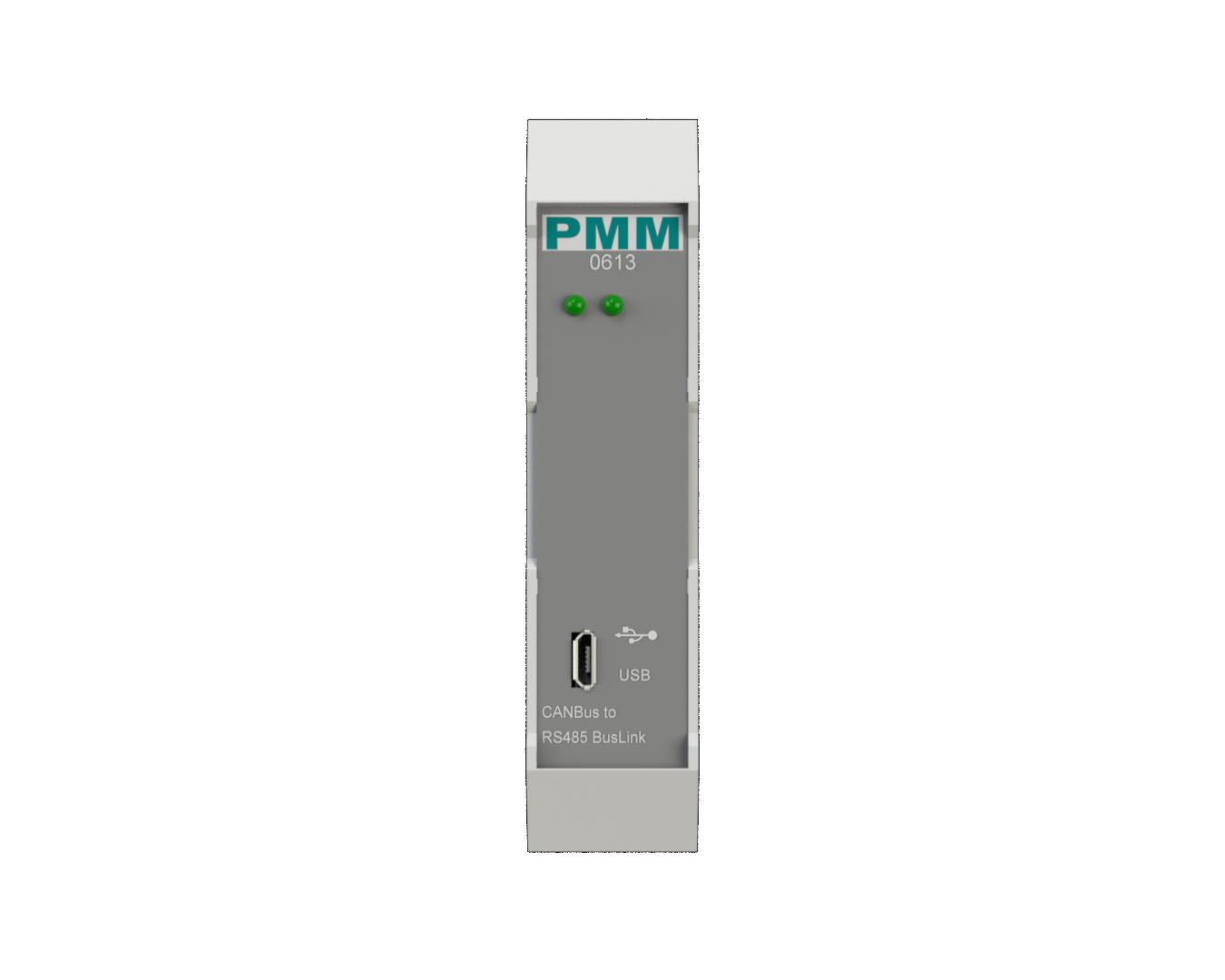

PMM0613 - CANBus to RS485 BusLink
CANBus to RS485 BusLink
Price from USD 320.00
Key features
- Simple to set up and cost effective
- 1x Ethernet interface 10/100Base-T
- 1x RS485 with power surge ±2.5kV isolation protection
- Overvoltage and reverse polarity protected
- Meeting several industrial standards
- Wide range of power supply options (10-60 VDC)
- Onboard Termination resistor via dip switch
- EMI, EMS, EMC, and shock protected
- Standard din rail mounting option
- -40 to 85 °C Operating temperature
- 5% to 90% Non-condensing Relative Humidity
Overview
PMM0613 is a reliable, and simple to set up interface converter that implements data exchange between CAN-bus network and RS-485 device. It also supports data exchange between CAN-bus network and Modbus RTU protocol. It supports multiple conversion modes like transparent conversion, marked transparent conversion, Modbus RTU protocol conversion and data conversion. Otherwise, it provides matching CAN configuration tools which can achieve data conversion between CAN bus and RS-485 serial port via easy setup.
DIP switch could implement configuration mode enablement for device. Hardware adopts fan less, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC.
It can be widely used in but not limited to the following applications
Applications
- PLC control
- Management
- Building automation
- Healthcare automation system
- Measuring instrument
- Environment monitoring system, etc.
Specifications
| Interfaces | |
|---|---|
| Serial | 1x RSR85 port |
| Ethernet | 1x 10/100 RJ45 |
| USB | 1x USB2.0 Type micro-B |
| CAN Bus | 1 CAN Port | Transmission distance: 40m~10km | CAN signal: CANH, CANL, GND |
| LED Indicators | 1x LED for Tx and 1x LED for Rx for communication over RS485 port indication |
| Power Parameters | |
| Input Power Supply Options | 10-60 VDC (10-48 VAC) |
| Physical Characteristics | |
| Housing | Polyamide (Nylon 6.66)/PA |
| Dimensions | 3.91x4.44x0.99 inch (99.4x113x22.6 mm) |
| Degree of protection | IP45 |
