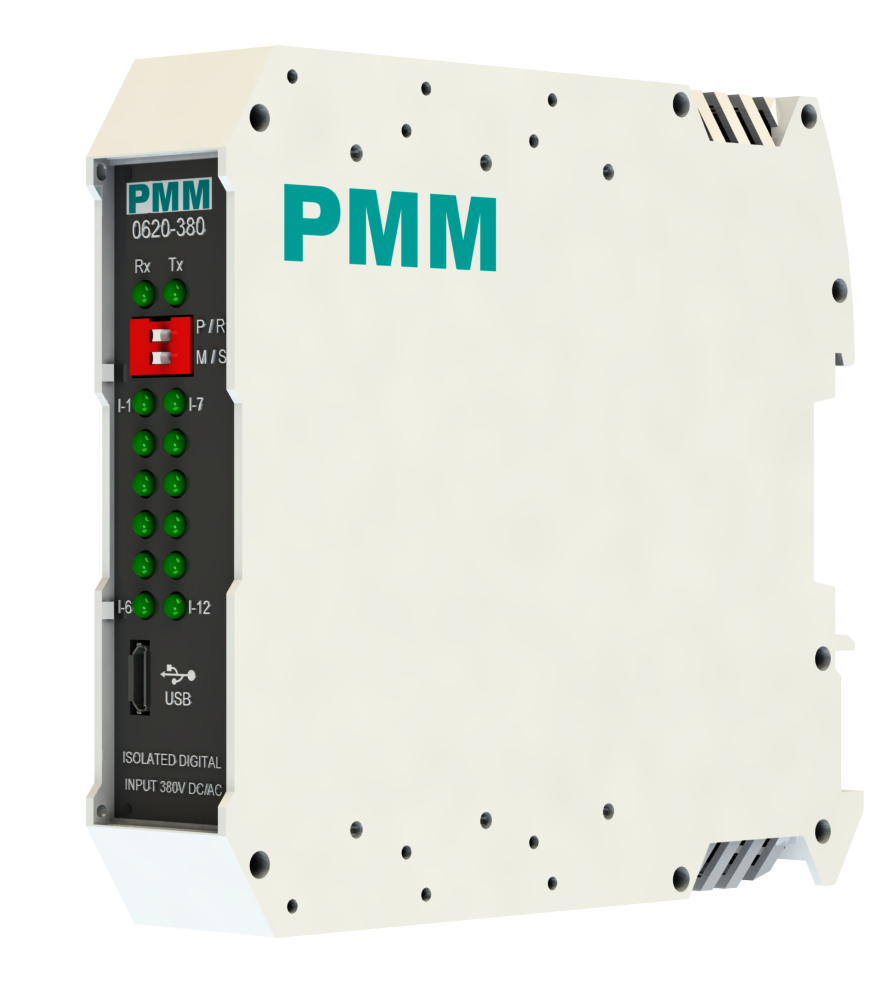

PMM0620-380 - (12 - 60) x Digital Input 380VDC
(12 - 60) x Digital Input 380VDC
Price from USD 108.20
Key features
- (12 - 60) x Isolated Digital Input 380VDC/AC
- 32-bit ARM core microcontroller with 48 MHz clock
- Hot swap redundancy exchange and fail safe ready
- Stand alone programming or Modular operation modes
- 1x Ethernet 10/100 port
- 1x Serial RS485 port with power surge ±2.5kV isolation protection
- Overvoltage and reverse polarity protected
- Onboard Termination resistor via dip switch
- Wide range of power supply options (9-56 VDC)
- 5000V system/field isolation
- Simple to set up and cost effective
- High speed data reading with high reliability and accuracy
- EMI, EMS, EMC and shock protected
- -40 to 80 °C (-40 to 185°F) Operating temperature
- 5% to 90% Non-condensing Relative Humidity
- Standard 35mm din rail mounting bracket
Overview
PMM0620-380 is a reliable, and simple to set up digital Input module that has (12 - 60) isolated channels. The module receives analog signals from sensors and field devices of 380VDC/AC range. Then, the module converts the signal to 0-5 V scale to make the signals compatible with the CPU. In addition, the isolation feature provides high protection against ground potential differences between field signals and the CPU. PMM0620-380 is widely used in signal interface switching of PLC, single chip or other industrial control board.
Moreover, PMM0620-380 operates under three operational modes: Modular operation mode: the module is connected to a PLC by RS485 and implement specific function assigned by the PLC. Fail Safe mode: the module should be pre-programmed in case of lost connection with the PLC to carry on its function effectively. Stand-alone: the module can be programmed to work as PLC and control the field devices. In addition, PMM0620-380 industrial grade IO module can function under harsh environmental conditions of any site. It is reliable, easy to configure and has an extreme accuracy.
Specifications
| Interfaces | |
|---|---|
| Serial | 1x RS485 port |
| Ethernet | 1x 10/100 RJ45 |
| DI/DO | (12 - 60) x digital inputs 380VDC/AC |
| USB | 1x USB2.0 Type micro-B |
| LED Indicators | 12x LED for Digital Input | 2x LED for communication |
| Power Parameters | |
| Input Power Supply Options | 9-56 VDC |
| Power Connector | Phoenix Contact 4 pins 3.5mm |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 3.91x4.37x0.99 inch (99.4x111.2x22.6 mm) |
| Mounting Options | DIN Rail |
