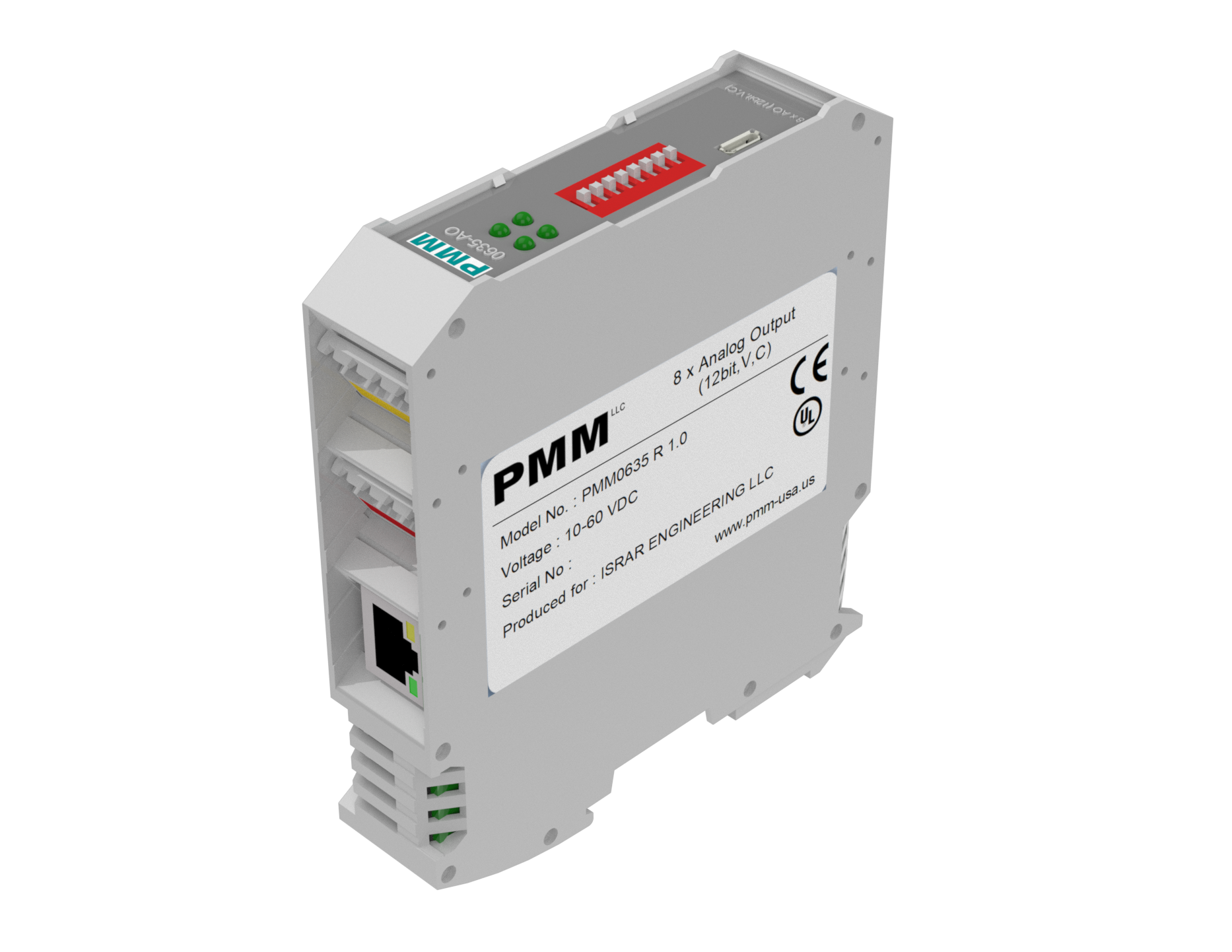

PMM0635X - 12 Analog Outputs - 12-bit Flexible Voltage / Current
12 Analog Outputs - 12-bit Flexible Voltage / Current
Price from USD 58.00
Key features
- 12 Analog Output channels
- 12-bit flexible Voltage / Current analog output
- Standard Modbus RTU communication over RS-485
- 32-bit ARM core microcontroller with 48 MHz clock
- Stand-alone operation or modular analog output expansion capability
- Isolated RS-485 communication interface
- USB service port for configuration and maintenance
- Wide input power supply range (12 - 48 VDC)
- Overvoltage and reverse polarity protection
- Reliable industrial-grade design with surge protection
- EMI, EMS, EMC, and shock resistant
- Standard 35 mm DIN rail mounting
- Operating temperature: -40 to 80 °C (-40 to 185 °F)
- 5% to 90% non-condensing relative humidity
Overview
PMM0635X is a 12-bit flexible analog output module designed for industrial control, signal generation, automation, and field device actuation applications. The module provides 12 Analog Output channels, allowing it to read voltage or current signals from sensors, transmitters, meters, and other field devices through standard Modbus RTU communication over an RS-485 interface.
The module supports flexible Voltage / Current analog output operation with 12-bit resolution, making it suitable for common industrial analog standards such as voltage-based control and current-loop control applications.
Designed for harsh industrial environments, PMM0635X combines a compact DIN-rail form factor, USB service access, isolated RS-485 communication, reverse-polarity and overvoltage protection, and a fixed 12 - 48 VDC power supply range.
PMM0635X is suitable for a wide range of industrial and utility monitoring and control applications, including:
Applications
- SCADA and remote terminal unit (RTU) systems
- High-resolution analog sensor monitoring and data acquisition
- High-resolution analog signal acquisition
- Industrial process monitoring and control
- Renewable energy plant control and monitoring
- Substation auxiliary control and signal output
- PLC and controller analog output expansion
- Building management and utility monitoring systems
Specifications
| Analog Output Data | |
|---|---|
| Analog Outputs | 12 Analog Output channels |
| Resolution | 12-bit analog output resolution |
| Signal Type | Flexible Voltage / Current analog output |
| Configuration | Flexible Voltage / Current analog output configuration |
| Protection | Overvoltage and reverse polarity protection |
| Interfaces | |
| Serial Interface | 1x RS-485 port |
| Communication Protocol | Standard Modbus RTU |
| USB Interface | 1x USB service/configuration port |
| LED Indicators | Analog output and communication status indication | TX/RX communication LEDs |
| Power Parameters | |
| Input Power Supply | 12 - 48 VDC |
| Power Connector | Phoenix Contact 4-pin, 3.5 mm terminal connector |
| Power Protection | Reverse polarity and overvoltage protection |
| Physical Characteristics | |
| Housing | Plastic enclosure |
| Dimensions | 103 × 103 × 22.5 mm | 4.05 × 4.05 × 0.88 inch |
| Mounting | Standard 35 mm DIN rail mounting |
| Environmental Conditions | |
| Operating Temperature | -40 to 80 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 90%, non-condensing |
