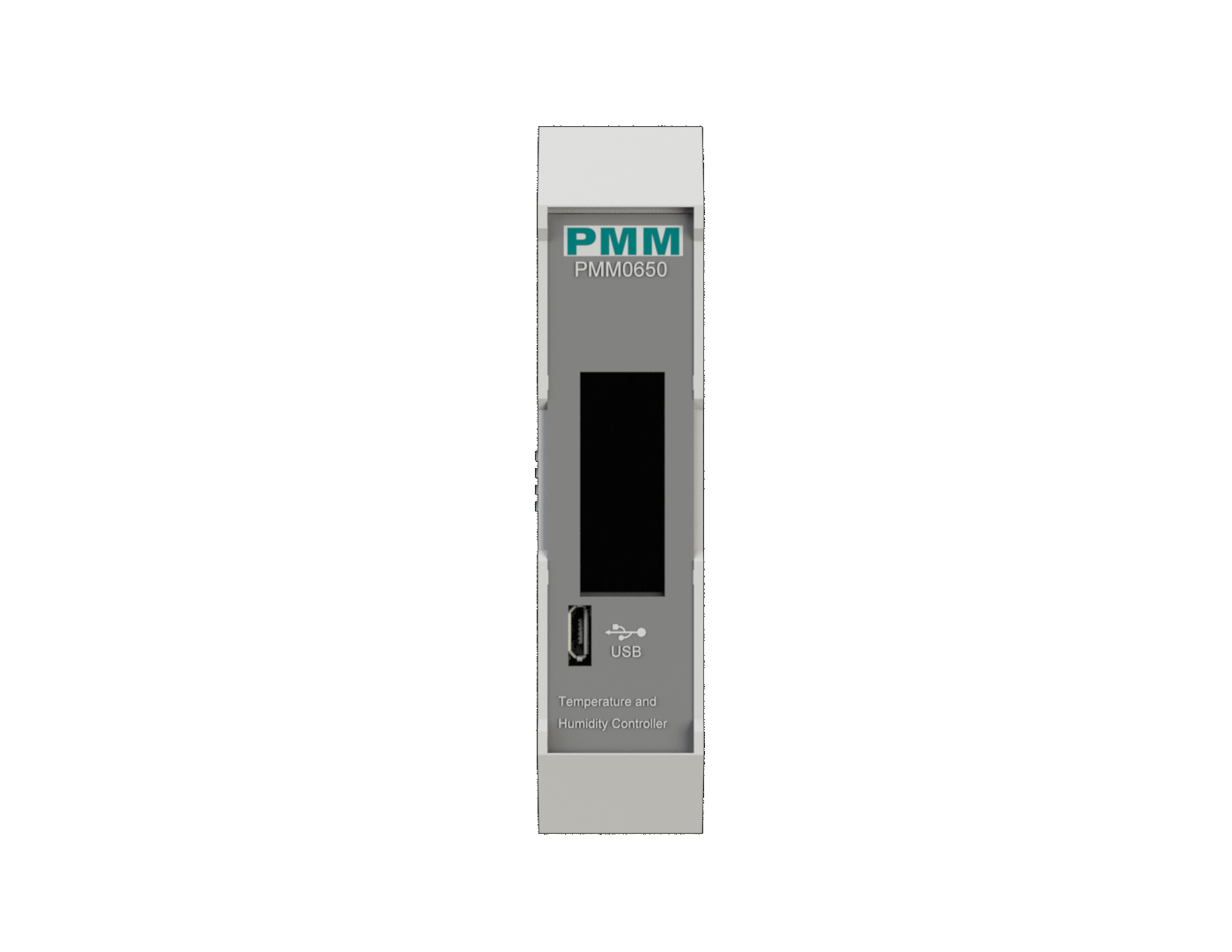

PMM0650 - Temperature and Humidity Controller

Temperature and Humidity Controller

Price from USD 350.00

Key features

• Simple to set up and cost-effective
• Hot swap redundancy exchange and fail safe ready
• Stand-alone programming or Modular operation modes
• The device supports Over the Air (OTA) programming through mobile application
• 32-bit ARM core microcontroller with 48 MHz clock
• 50 HZ frequency
• 1x Ethernet 10/100 port
• 1x RS485 port
• 2x Relay output
• 2x Analog output (0-10V)
• 2x Internal sensor
• 2x External sensor (4-20mA) or (0-10V) or I2C
• 120Ω terminal resistor controlled by dip switch
• High resolution 0.91” OLED display
• Wide range of power supply options (10-60 VDC)
• The controller accuracy is ±2% RH and ±0.5°C
• Highly compacted size
• Reliable control of relative temperature in the range of -40°C to 80°C
• Reliable control of relative humidity in the range of 0% to 100%
• Standard din rail mounting option

Overview

PMM0650 is a reliable, compact, and easy to setup temperature and humidity controller which measures the ambient temperature and humidity either by internal or external sensors.

The outputs are displayed on a high-resolution OLED display allowing the client to monitor and observe temperature and humidity. In addition, the client can update the controller’s settings configuration remotely through mobile application.

PMM0650 operates under three operational modes:

PMM0650 is extremely reliable, precise, cost-effective, and accurate with minimum error percentage.

PMM0650 is compatible with three types of output interfaces for external sensors: 4-20mA, 0-10V or I2C each type has a connection configuration. Only single I2C sensor can be connected to the controller while the other types two sensors can be connected based on dip switch configuration.
