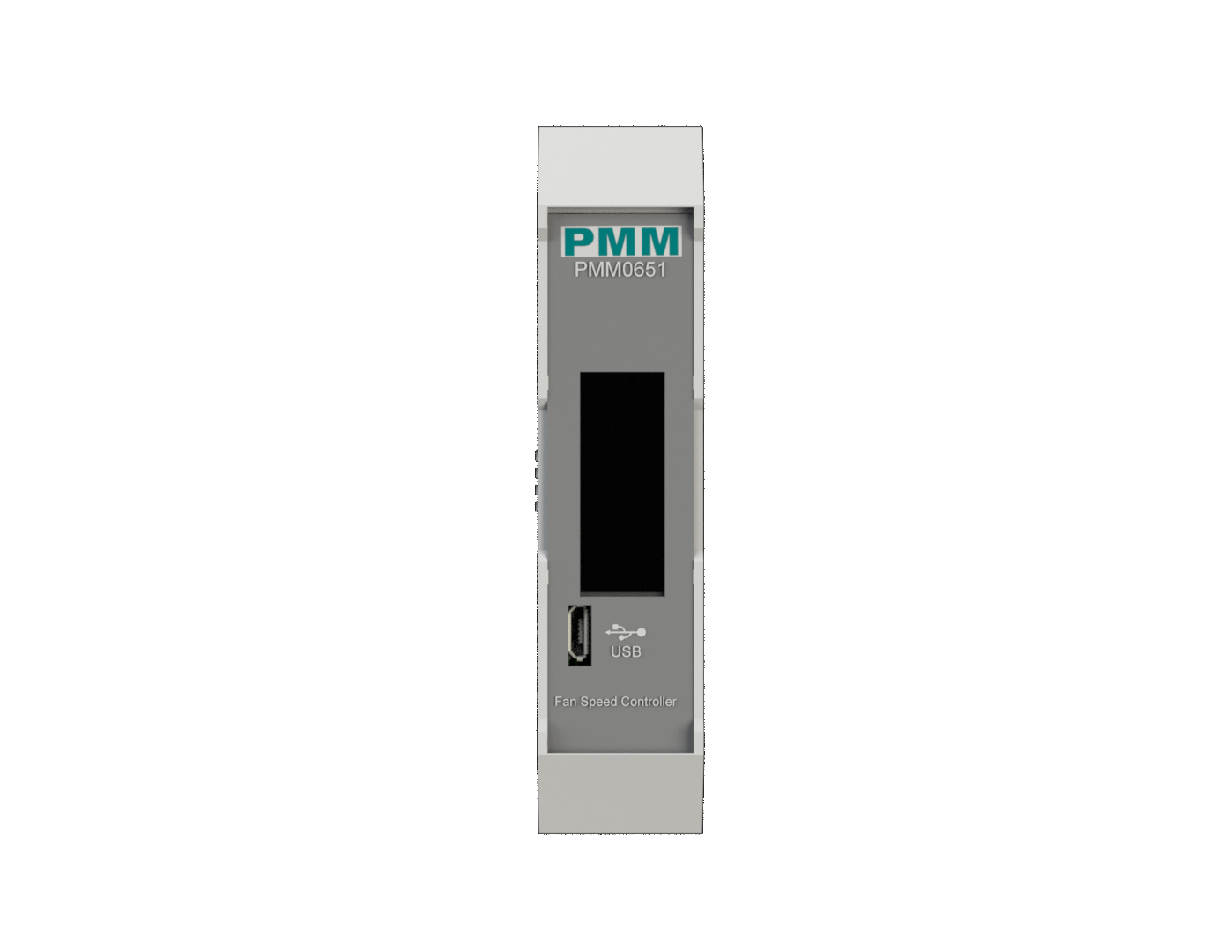

PMM0651 - Fan Speed Controller

Fan Speed Controller

Price from USD 350.00

Key features

• Simple to set up and cost-effective
• Hot swap redundancy exchange and fail safe ready
• Stand-alone programming or Modular operation modes
• The device supports Over the Air (OTA) programming through mobile application
• 32-bit ARM core microcontroller with 48 MHz clock
• 50 HZ frequency
• 1x Ethernet 10/100 port
• 1x RS485 port
• 2x Analog input
• 2x Analog output
• 1x Digital input
• 2x Relay output
• 120Ω terminal resistor controlled by dip switch
• High resolution 0.91” OLED display
• Wide range of power supply options (10-60 VDC)
• Highly compacted size
• Standard din rail mounting option

Overview

PMM0651 is reliable, compact and easy to setup fan speed controller that regulates the speed of industrial fans based on preset factors values obtained from an external sensor, the controller is connected directly with a driver which in turns actually regulates the fan speed.

The outputs are displayed on a high-resolution OLED display allowing the client to monitor and observe temperature and humidity. In addition, the client can update the controller’s settings configuration remotely through mobile application.

PMM0651 operates under three operational modes:

PMM0651 is extremely reliable, precise, cost-effective, and accurate with minimum error percentage.

PMM0651 is compatible with three types of output interfaces for external sensors: 4-20mA, 0-10V or I2C each type has a connection configuration. Only single I2C sensor can be connected to the controller while the other types two sensors can be connected based on dip switch configuration.

Specifications
