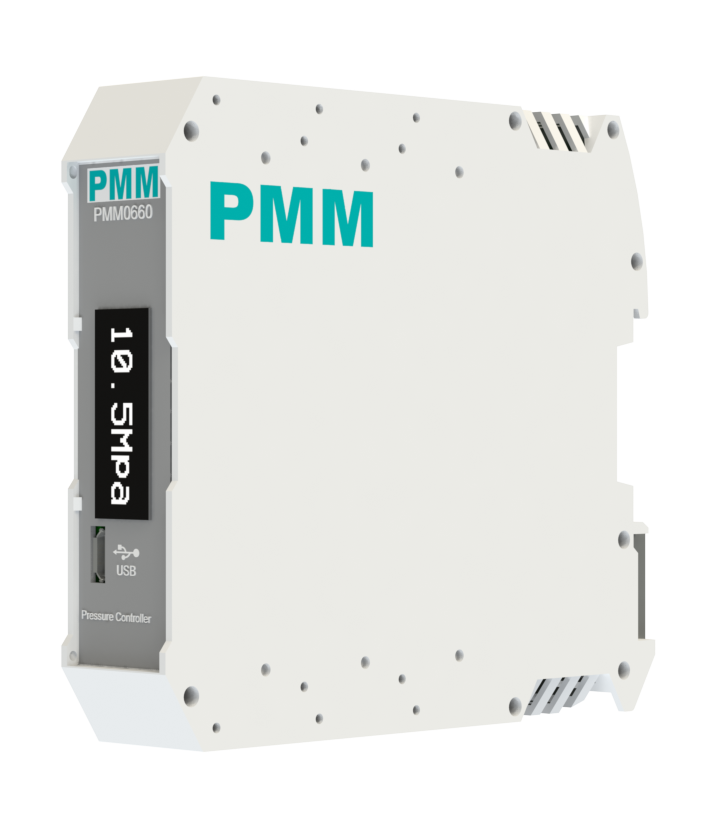

PMM0660 - Pressure Controller

Pressure Controller

Price from USD 350.00

Key features

• Simple to set up and cost-effective
• Hot swap redundancy exchange and fail safe ready
• Stand-alone programming or Modular operation modes
• The device supports Over the Air (OTA) programming through mobile application
• Pressure control accuracy ±0.1% of full scale
• 32-bit ARM core microcontroller with 48 MHz clock
• 1x Ethernet 10/100 port
• 1x RS485 port
• 2x Analog input (4-20mA)
• 2x Analog output (0-10V)
• 1x Digital input
• 3x Relay digital output
• 2x External sensor (4-20mA) or (0-10V) or I2C
• 120Ω terminal resistor controlled by dip switch
• High resolution 0.91” OLED display
• Wide range of power supply options (10-60 VDC)
• Highly compacted size
• Standard din rail mounting option

Overview

PMM0660 is reliable, compact, and easy to setup pressure controller which is used in Hydraulic systems to regulate the fluid flow through relieve or piezo valves based on pressure values. The controller is essential in critical pressure applications.

The outputs are displayed on a high-resolution OLED display allowing the client to monitor and observe temperature and humidity. In addition, the client can update the controller’s settings configuration remotely through mobile application.

PMM0660 operates under three operational modes:

PMM0660 is extremely reliable, precise, cost-effective, and accurate with minimum error percentage.

PMM0660 is compatible with three types of output interfaces for external sensors: 4-20mA, 0-10V or I2C each type has a connection configuration. Only single I2C sensor can be connected to the controller while the other types two sensors can be connected based on dip switch configuration.

Specifications
