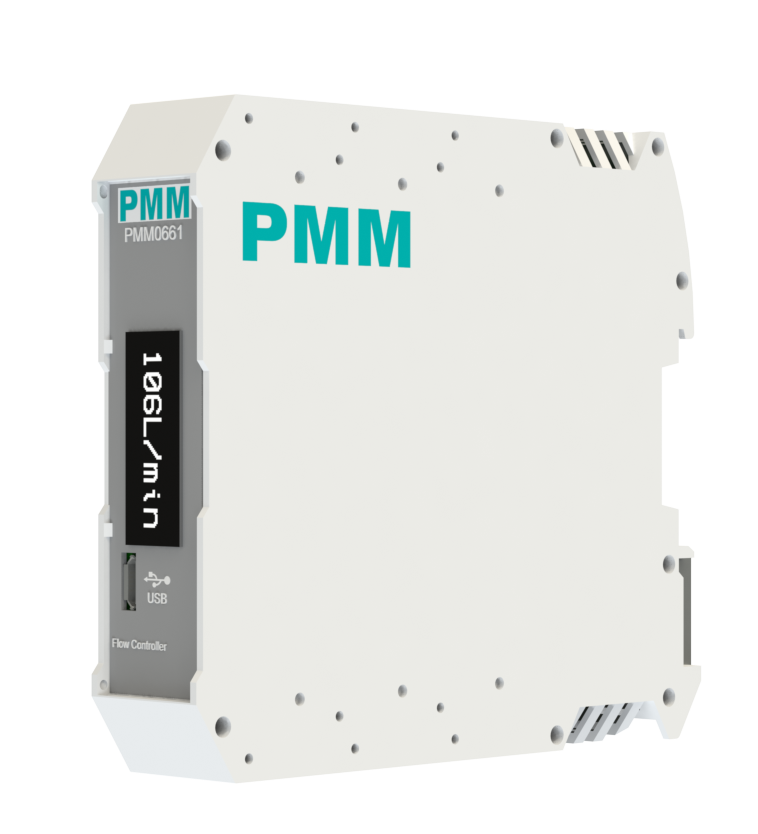

PMM0661 - Flow Controller

Flow Controller

Price from USD 350.00

Key features

• Simple to set up and cost-effective
• Hot swap redundancy exchange and fail safe ready
• Stand-alone programming or Modular operation modes
• The device supports Over the Air (OTA) programming through mobile application
• Accuracy is ≤2% of full scale
• 32-bit ARM core microcontroller with 48 MHz clock
• 1x Ethernet 10/100 port
• 1x RS485 port
• 2x Analog input
• 2x Analog output (0-5V)
• 1x Digital input
• 3x Relay digital output
• 120Ω terminal resistor controlled by dip switch
• High resolution 0.91” OLED display
• No drift and no re-calibration are required on the field
• Wide range of power supply options (10-60 VDC)
• Highly compacted size
• Standard din rail mounting option

Overview

PMM0661 is robust, reliable, and accurate flow controller. It is used to monitor and control flow rate variables by receiving input signals from an external sensor and make a response regarding. PMM0661 is used in several industrial applications such as controlling fluids flow rate through direct connection with pumps or valves, controlling air speed, counting items on conveyor belt in manufacturing sectors and quantifying powder flowing in the air.

There are many methods for controlling the flow rate, the most commonly used: limit, linear, PID, feedforward, fuzzy logic and advance or nonlinear controlling.

The outputs are displayed on a high-resolution OLED display allowing the client to monitor and control the flow rate. In addition, the client can update the controller’s settings configuration remotely through mobile application.

PMM0661 operates under three operational modes:

PMM0661 is extremely reliable, precise, cost-effective, and accurate with minimum error percentage.

PMM0661 is compatible with two types of output interfaces for external sensors: 4-20mA, 0-10V each type has a connection configuration as two sensors can be connected based on dip switch configuration.
