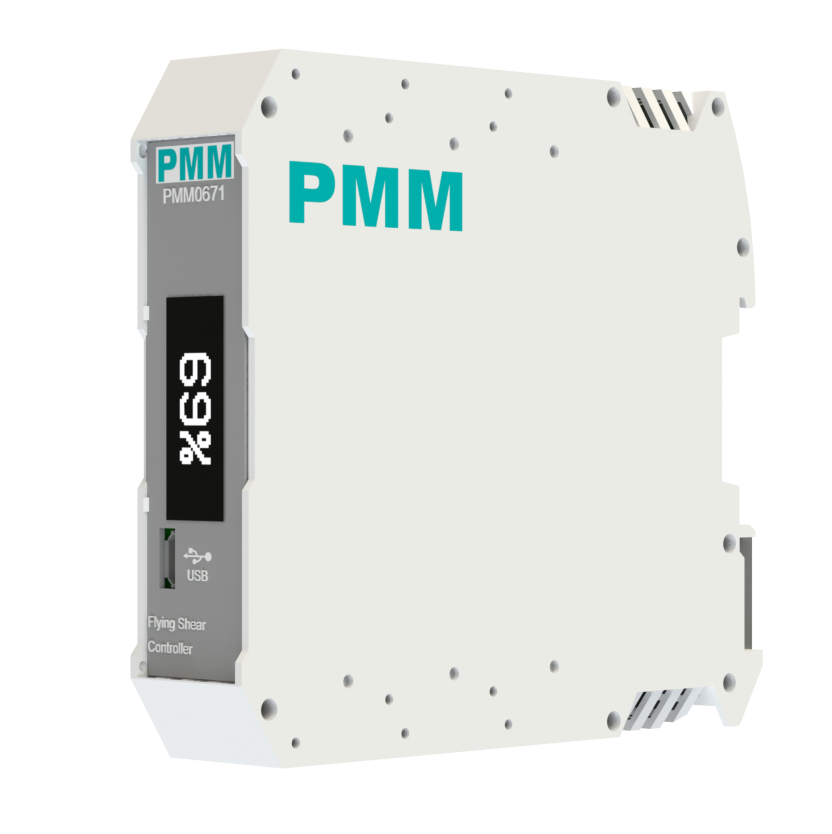

PMM0671 - Flying Shear Controller

Flying Shear Controller

Price from USD 350.00

Key features

• Simple to set up and cost-effective
• Hot swap redundancy exchange and fail safe ready
• Stand-alone programming or Modular operation modes
• The device supports Over the Air (OTA) programming through mobile application
• Controls both parallel and angular flying shear
• Compatible with servo motor and stepper motor
• Dynamic motion profile changes such as cut lengths, etc
• 32-bit ARM core microcontroller with 48 MHz clock
• The maximum output frequency: 40KHZ
• 1x Ethernet 10/100 port
• 1x RS485 port
• 1x Analog Input
• 1x Analog Output
• 2x Relay digital output
• 120Ω terminal resistor controlled by dip switch
• High resolution 0.91” OLED display
• No drift and no re-calibration are required on the field
• Wide range of power supply options (10-60 VDC)
• Highly compacted size
• Standard din rail mounting option

Overview

PMM0671 is reliable, robust, and compact flying shear controller that regulates the shear movements through accurate synchronization with the material web. Therefore, providing extremely high stability and accuracy processing along with maximizing the production.

The outputs are displayed on a high-resolution OLED display allowing the client to monitor and control the flow rate. In addition, the client can update the controller’s settings configuration remotely through mobile application.

PMM0671 operates under three operational modes:

PMM0671 is extremely reliable, precise, cost-effective, and accurate with minimum error percentage.

Specifications
