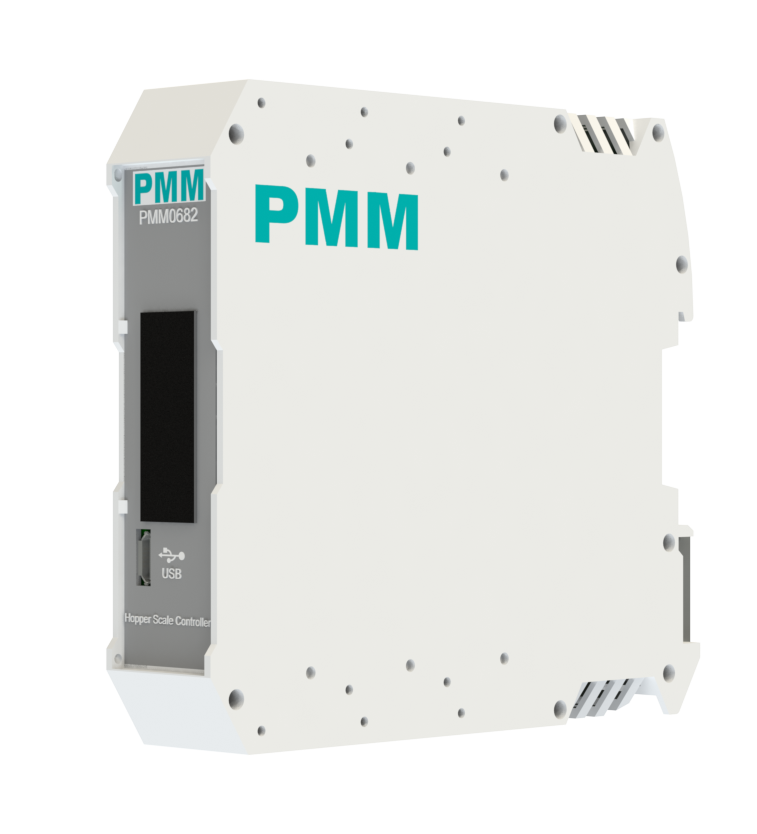

PMM0682 - Hopper scale controller

Hopper scale controller

Price from USD 350.00

Key features

• Simple to set up and cost effective
• Hot swap redundancy exchange and fail safe ready
• Stand alone programming or Modular operation modes
• High speed data read/write with high reliability and accuracy
• 32-bit ARM core microcontroller with 48 MHz clock
• 1x Ethernet 10/100 port
• 1x RS485 port with power surge ±2.5kV isolation protection
• 5000V system/field isolation
• Wide range of power supply options (9-56 VDC)
• Overvoltage and reverse polarity protected
• EMI, EMS, EMC and shock protected
• -40 to 80 °C Operating temperature
• 5% to 90% Non-condensing Relative Humidity
• Standard 35mm din rail mounting bracket

Overview

PMM0682 is an innovative, and simple to set up Hopper scale controller module. PMM0682 is used to swiftly convert between protocols within a network, it supports up to 8 slave devices per communication port on the same network.

PMM0682 industrial grade IO module can function under harsh environmental conditions of any site. It is especially designed to meet all power substations and renewable energy plants requirements. Furthermore, it covers wide range of field standards of power supply, reliability, easy configuration and long-lasting life.

PMM0682 can perform efficiently and effectively in the substation and industrial applications .

Applications

• IO PLC Module
• High speed Data acquisition
• Data logger terminal
• Digital Stand-alone controller
• ... and many more.

Specifications
