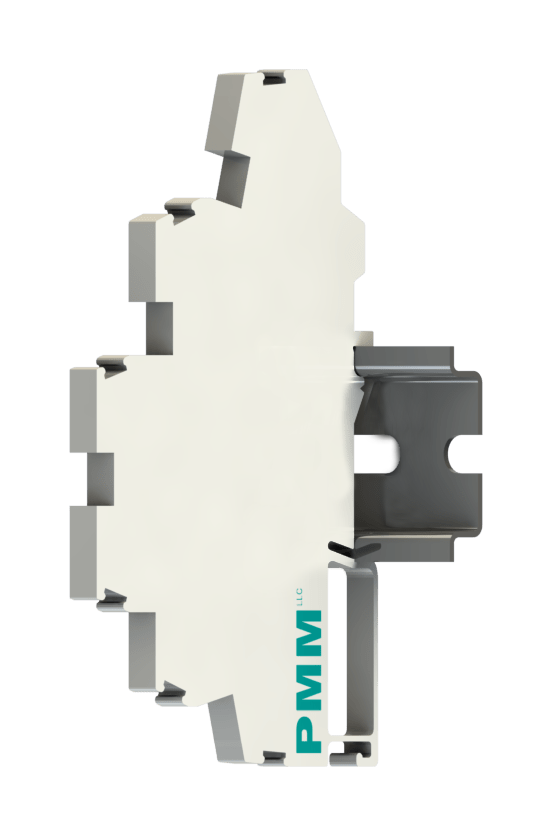

PMM0705 - Digital output 250VAC module
Digital output 250VAC module
Price from USD 13.00
Key features
- Digital output 250VAC
- Both power and signal isolated module
- There is no need for an external power supply; operating power supply is 5V DC
- High reliability and accuracy
- Highly compacted size
- DIN rail mounting
- Operating temperature: -20°C to +83°C
Overview
DESCRIPTION
PMM0705 is an isolated channel 250V digital output module which transmits control signals from the CPU to the connected actuators.
PMM0705 has the ability to deliver 2A to the connected load which makes it highly useful and applicable in a wide range of industrial practices and processes.
BLOCK DIAGRAM
Specifications
| Technical Data | |
|---|---|
| Number of Digital Output | 1 |
| Signal Type | Voltage |
| Voltage Signal Type | 250VAC |
| Output Characteristic | Potential-free |
| Output Current Per Channel | 2A |
| Isolation | 5000V System/Field |
| Operating Temprature | -20°C to +83°C |
| Degree of Protection | IP54 |
| Mechanical Data | |
| Width | 66.5 mm (2.6") |
| Height | 113 mm (4.5") |
| Depth | 6 mm (0.23") |
| Weight | 50 g |
| Mounting Type | Din rail |
