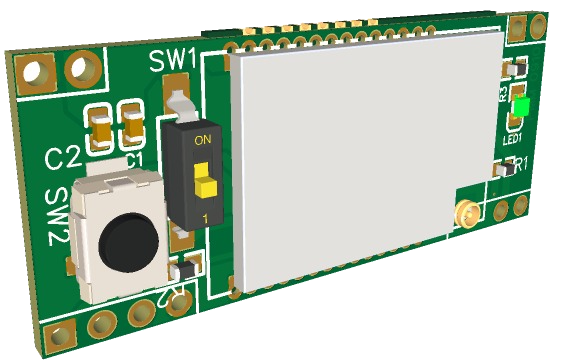

PMM0910i - UART/TTL to CANBUS Converter Module

UART/TTL to CANBUS Converter Module

Key features

• Bidirectional conversion between UART and CAN is available
• Three types of conversion mode : - Transparent conversion - Transparent tape identification - Protocol mode conversion
• Two CAN frame data types transmission methods: - Fixed configuration - Serial frame data designation
• Power isolation
• Data isolation (2500Vrms 1Mbps)
• Parameter configuration via UART interface is available
• UART baud rate : 300~921600UART baud rate : 300~921600
• Parameter setting mode entered via software and hardware
• Factory parameters is restored via software or hardware
• Multiple indications include power, status and mode
• Module size: 43mm * 18mm * 3mm
• Vertical and horizontal mounting options, compatible with standard DIP/SIP pinot
• RoHS Compliant
• Proven PCB Layout
• Fully Assembled and Tested

Overview

DESCRIPTION

PMM0910 is a CANBUS to UART/TTL converter. It integrates one channel CAN-BUS interface and one channel UART TTL interface, which can recognize mutual transparent transmission or Modbus protocol conversion between UART TTL signal and CAN-BUS.

PMM0910 is compact in size and can be powered through any 3.3V or 5V power supply for easy integration into a variety of boards.

BOARD PINOUT

SCHEMATIC DIAGRAM

DIMENSIONS

Specifications
