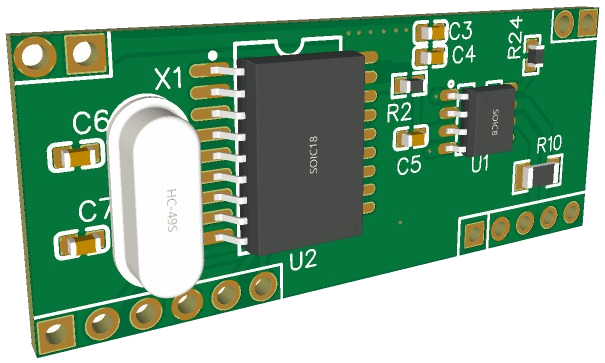

PMM0911 - SPI to CAN BUS Converter Module

SPI to CAN BUS Converter Module

PMM0911 - SPI to CAN BUS Converter Module

Key features

  • Support CAN V2.0B
  • High-Speed SPI Interface (10 MHz) --> - Transparent conversion.--> - Transparent tape identification.--> - Protocol mode conversion.--> -->
  • Low power consumption --> - Fixed configuration.--> - Serial frame data designation.--> -->
  • Protected from Overvoltage Line Faults up to ±60V
  • ±25kV ESD protection
  • 120 Ohm terminal resistors
  • Operating temperature: -40 to 80C
  • Module size: 43mm * 18mm * 5mm
  • Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
  • RoHS Compliant
  • Proven PCB Layout
  • Fully Assembled and Tested

Overview

DESCRIPTION

PMM0911 is an SPI to CANBUS converter module via LTC2875 Transceiver and MCP2515 controller which allows ICs to use CANBUS differential signaling for robust long-distance serial communication. This module allows for data transmission and communication of a CPU/MCU with any CANBUS device. .

This module can operate normally with a voltage range of (3V to 3.6V) or (4.5V to 5.5V) and needs an external power supply.

BOARD PINOUT

SCHEMATIC DIAGRAM

DIMENSIONS


Specifications

Speed SPI Interface10 MHz
Length in the data field0 – 8 byte
Protected from Overvoltage Line Faultsup to ±60V
ESD protection±25kV
terminal resistors120 Ohm
Operating temperature-40 to 80C
Module size43mm * 18mm * 5mm
