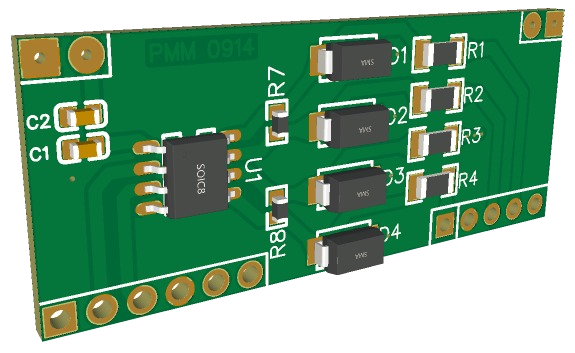

PMM0914 - UART/TTL to RS422 Converter Module

UART/TTL to RS422 Converter Module

Key features

• Customized 3.3V power supply and signals
• Communication speed 2.5MBPS
• Ultra-long transmission 1000 meters
• Improved ESD Specifications: - ±15kV Human Body Model - ±15kV IEC1000-4-2 Air Discharge - ±8kV IEC1000-4-2 Contact Discharge
• 120 ohm termination resistor
• Operating temperature -40 to 800C
• Very high EMC and EMI performance
• Module size: 43mm * 18mm * 3mm
• Vertical and horizontal mounting options, compatible with standard DIP/SIP pinout
• RoHS Compliant
• Proven PCB Layout
• Fully Assembled and Tested

Overview

DESCRIPTION

PMM0914 is a TTL to RS422 converter module via SP490E TTL to RS-422 Interface chipset which allows ICs to use RS-422 differential signaling for robust long-distance serial communications. This module allows for data transmission and communication of a CPU/MCU with any RS422 device over large distances up to 1000m.

Earthing the module by connecting its terminal to ground gives it an excellent anti-jamming and anti-lightning effect, thus making it more secure and perfect for industrial use. Moreover, it has the ability to work under difficult environmental conditions.

BOARD PINOUT

SCHEMATIC DIAGRAM

DIMENSIONS

Specifications
