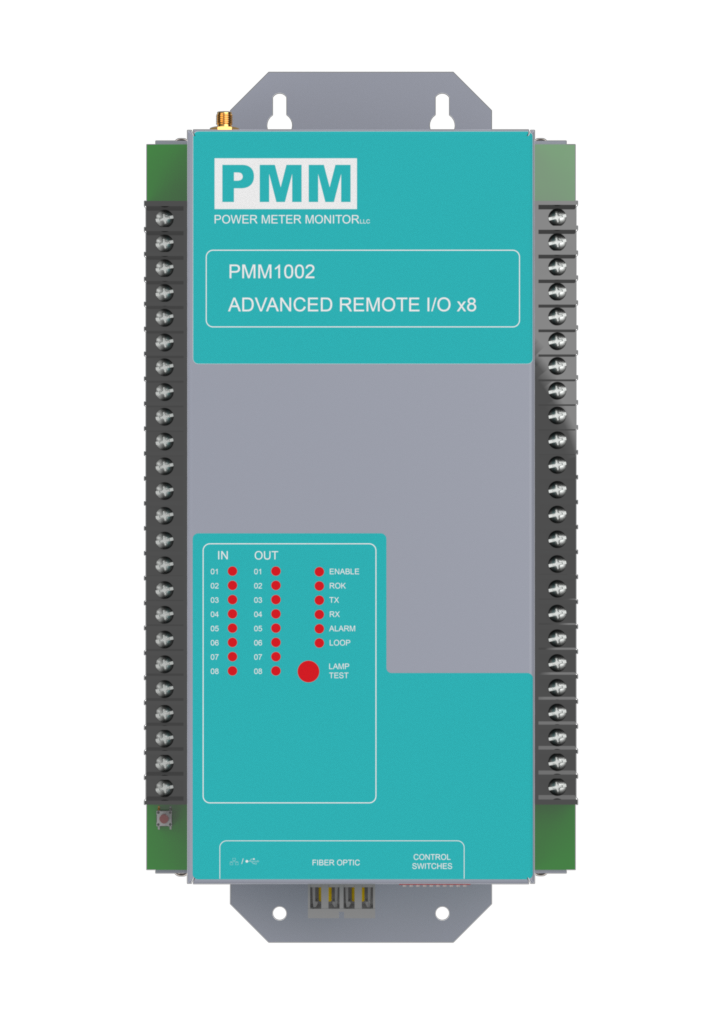

PMM1002 - 8xIO Mirror - Basic
(8xInputs - 8xOutputs) IO Mirror - Basic with fiber optic connection
Price from USD 1225.80
Key features
- 8x Digital input
- 8x Output relays
- 1x 10/100 Ethernet port
- 1x Customized fiber optic port
- 1x Serial communication port RS485
- Reducing installation cost while increasing workers safety
- High data transmission reliability
- Simple to set up
- High operating speed
- Built to meet stringent industrial standards
- Wide range of power supply options
- Direct Panel Mounting
- EMI, RFI, shock and vibration protected
- RoHS, CE and FCC certifications
- System operating temperature -40 to 85°C (–40 to +185°F)
Overview
DESCRIPTION
PMM1002 is a reliable, secure, simple to set up remote I/O module that communicates with remote devices using Mirrored Bits® through a fiber optic port. Each contact input controls one of the eight MIRRORED BITS transmit bits, while each of the eight received MIRRORED BITS controls an output contact.
PMM1002 ensures data transmission between remote devices for extended distances through the fiber optic port with high security and lower project costs as fiber optic replaces the large wires that are conventionally used.
PMM1002 is covered within a durable metal chassis that is designed and tested on field to withstands vibration, electrical surges, fast transients, and extreme temperatures as well as harsh environmental conditions.
APPLICATION
PMM1002 is especially designed to meet industrial standards, increasing the reliability and security for remote data transmission.
There are many applications can be performed by PMM1002 with high efficiency, including:
- Enhancing communication between existing relays
- Enhancing and isolating remote communication through fiber optic links
- Ensuring that relays are functioning properly by performing self-testing
- Transmitting data directly to existing cogeneration interconnections
- Enabling tele protection through digital multiplexers which allows monitoring transmission lines, isolating faults and preventing permanent damage with minimum possible cost
- Increasing I/O relay capability through MIRRORED BIT communications protocol
Specifications
| Power Parameters | |
|---|---|
| Power Supply Options | 10-60 VDC | 85-240 VAC |
| Data Transmission Rate | |
| Operating Time (Baud Rate) | 38400 (5-10 mS) | 19200 (8-13mS) | 9600 (14-19mS) |
| Digital Input | |
| Input Voltage Options | 24 VDC | 48 VDC | 110 VDC | 110 VAC | 220 VAC |
| Output Contact | |
| Maximum Current | 6A |
| MOV Protected | 270 VAC rms | 360 VDC continuous |
| Physical Characteristics | |
| Housing | Aluminum |
| Dimensions | 11.1 x 6.5 x 2.1 inch (282 x 165 x 55 mm) |
| Mounting Options | Direct Panel Mounting |
| Certifications | RoHS, CE and FCC |
